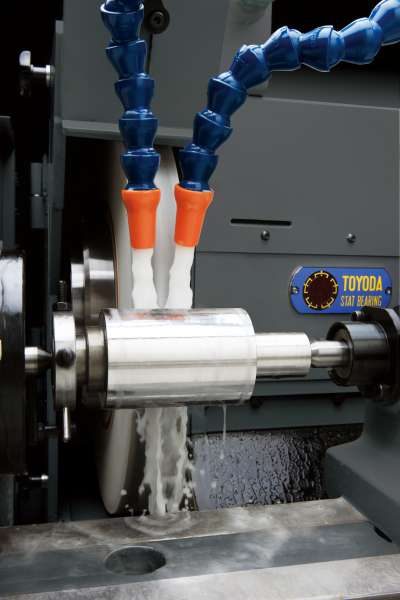

The GE3i-PRO the excellent operability with handle operation that feels like a hydraulic machine, this grinder is optimal for high-accuracy machining of individual work-piece. A single GE3i-PRO enable skilled technicians to use the machine as though it were hydraulic, and allows those with less experience to use it as an NC- controlled machine, this enable intuitive operation, digitization of know-how, and the passing down of technical knowledge to be achieved through the machine.
SPECIFICATION |
---|
ITEMS | UNIT | GE3i-PRO |
Distance between centers | mm | 250 |
Swing over table | mm | Ø200 |
Grinding diameter | mm | Ø0 ~ Ø60 |
Load mass between centers | kg | 20 *1 |
Wheel | ||
Wheel OD x ID | mm | Ø355 x Ø127 |
Max. Wide | mm | 38 [50] |
Surface speed | m/s | 33 [45] *2 |
The specification may be restricted according to the tooling of customer.
*1: Maximum live spindle load for live / dead spindle work-head (option) is 10 kg (including work-piece and work-piece holder).
*2: Wheel spindle motor is 2.2 kW with 30 m/s specification, and 3.7 kW with 45 m/s specification.
[ ] : Optional accessory
Pursuit ease of operation - Professionals handle

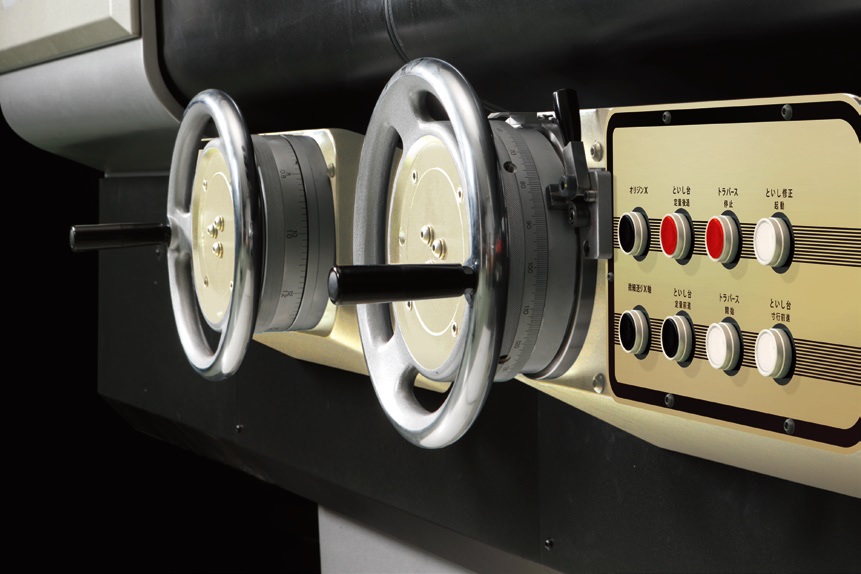

• Achieves hydraulic machine operability using an NC machine

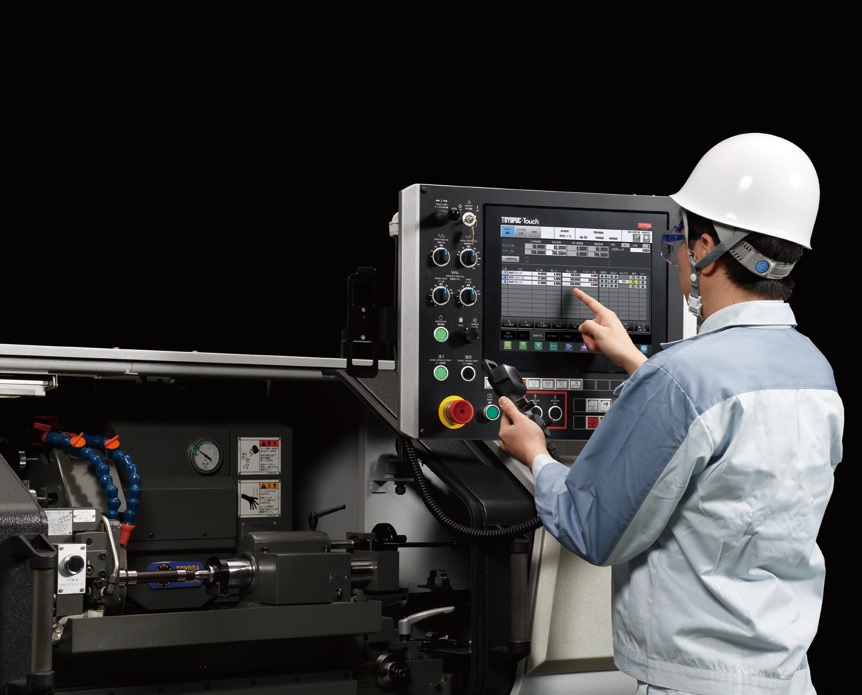

• Customizable front operation panel
Enables high grade "Monozukuri" that can be achieved by any operator
• Improved efficiency of single-part grinding
• Specialized screen display focused on handle operations
