JTEKT

HORIZONTAL MACHINING CENTERS

JTEKT Horizontal machining centers is a solid line up covering all types of manufacturing boasting the best cutting performance with the variety of spindle types selected. Advanced performance with ultimate speed with rigid platform helping to achieve the best productivity performance.

SEARCH BY INDUSTRY

A VERSATILE LINE - UP OF HORIZONTAL MACHINING CENTERS

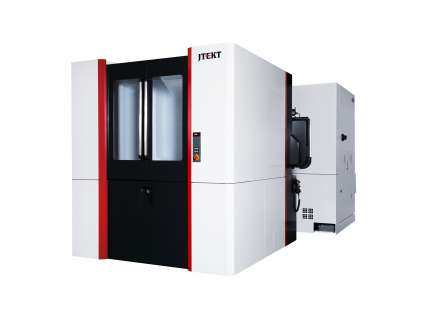

Pallet dimensions 400 - 450 mm

Top - level performance in machining small parts for all industries
	Pallet dimensions		: □400 - □ 450	mm
	Stroke	X - Axis	: 600	mm
		Y - Axis	: 560 - 600	mm
		Z- Axis	: 600 -630	mm
	Spindle speed		: 50 ~ 15,000 [ 8,000 /20,000 ]	min-1

VIEW MODEL

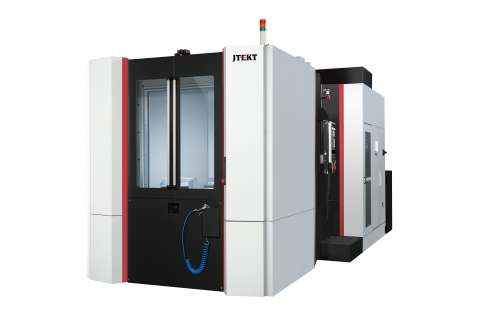

Pallet dimensions 500 - 550 mm

Top - level performance in machining small parts for all industries
	Pallet dimensions		: □500 - □550	mm
	Stroke	X - Axis	: 730 -750	mm
		Y - Axis	: 650 - 800	mm
		Z- Axis	: 850	mm
	Spindle speed		: 50 ~ 15,000 [ 50 ~ 20,000 ]	min-1

VIEW MODEL

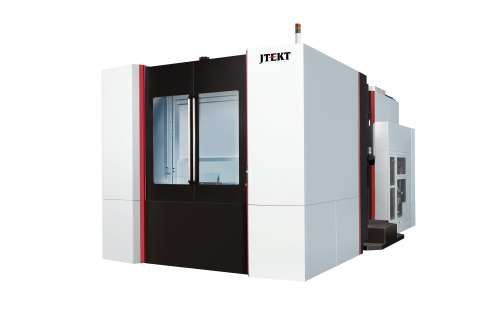

Pallet dimensions 630 mm

FH630SX-i
Achieving top level machining of medium and large parts across all industries.

Achieving top level machining of medium and large parts across all industries
	Pallet dimensions		: □630	mm
	Stroke	X - Axis	: 1050	mm
		Y - Axis	: 900	mm
		Z- Axis	: 1050	mm
	Spindle speed		: 50 ~ 6,000 [50 ~ 15,000 ]	min-1

VIEW MODEL

Pallet dimensions 800 mm

FH800SX-i
Achieving top level machining of medium and large parts across all industries.

Achieving top level machining of medium and large parts across all industries
	Pallet dimensions		: □800	mm
	Stroke	X - Axis	: 1,350 - 1,450	mm
		Y - Axis	: 1,150 - 1,250	mm
		Z- Axis	: 1,150 - 1,550	mm
	Spindle speed		: 50 ~ 6,000 [ 50 ~ 15,000 ]	min-1

VIEW MODEL

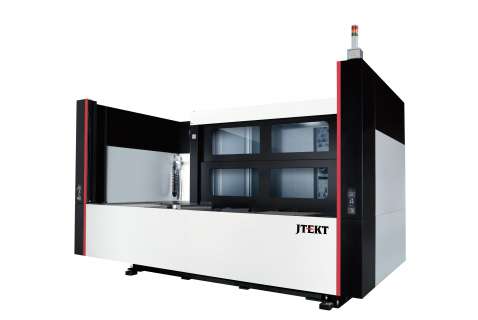

Pallet dimensions 1,000 - 1,050 mm

Top - level performance in machining large-size parts of every industry
	Pallet dimensions		: 800 x 1,000 [ □800 ] - □1050	mm
	Stroke	X - Axis	: 1,600	mm
		Y - Axis	: 1,400	mm
		Z- Axis	: 1,150	mm
	Spindle speed		: 50 ~ 6,000 [ 10 ~ 15,000 ]	min-1

VIEW MODEL

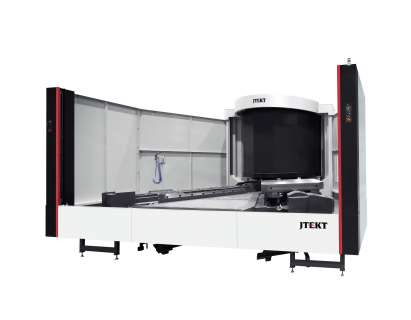

Pallet dimensions 1,250 mm

FH12500SX5-i
Top-level performance in machining large-size parts of every industry

Top - level performance in machining large-size parts of every industry
	Pallet dimensions		: □1250 [ 1,250 x 1,600 ]	mm
	Stroke	X - Axis	: 2,200	mm
		Y - Axis	: 1,500 - 1,600	mm
		Z- Axis	: 1,850	mm
	Spindle speed		: 10 ~ 6,000	min-1
