JTEKT

VERTICAL MACHINING CENTERS

A variety line up of vertical machining center for all kind of manufacturing. Improved heavy cutting with unrestrained power. universal cell line for mass production and user - friendly with good workability for the operator.

SEARCH BY INDUSTRY

A VERSATILE LINE - UP OF VERTICAL MACHINING CENTERS

FV-65 Series

FV965S
High rigidity box slide machine suiting all kinds of manufacturing

FV1165S
High rigidity box slide machine suiting all kinds of manufacturing

FV1365S
High rigidity box slide machine suiting all kinds of manufacturing

FV1565S
High rigidity box slide machine suiting all kinds of manufacturing

High rigidity box slide machine suiting all kinds of manufacturing
Pallet dimensions		: 1,100 X 650 - 1,650 X 650	mm
Stroke	X - Axis	: 900 -1,500	mm
	Y - Axis	: 650	mm
	Z- Axis	: 600	mm
Spindle speed		: 15 ~ 8,000 [ 15 ~ 12,000 ]	min-1
		: 15 ~ 6,000 [ 15 ~ 10,000 ]	min-1

VIEW MODEL

FV-80 Series

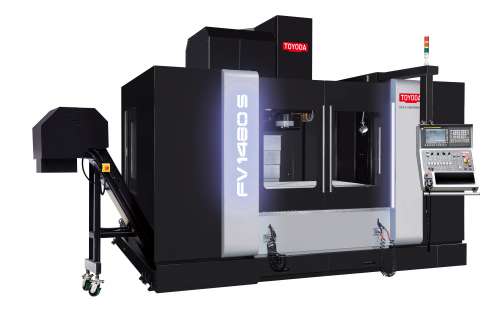

FV1480S
High rigidity box slide machine suiting all kinds of manufacturing.

FV1680S
High rigidity and Heavy Cutting for all manufacturing

High rigidity box slide machine suiting all kinds of manufacturing
Pallet dimensions		: 1,100 X 650 - 1,650 X 650	mm
Stroke	X - Axis	: 900 -1,500	mm
	Y - Axis	: 650	mm
	Z- Axis	: 600	mm
Spindle speed		: 15 ~ 8,000 [ 15 ~ 12,000 ]	min-1
		: 15 ~ 6,000 [ 15 ~ 10,000 ]	min-1

VIEW MODEL

FV-90 Series

FV1890S
Improved heavy cutting with unrestrained power

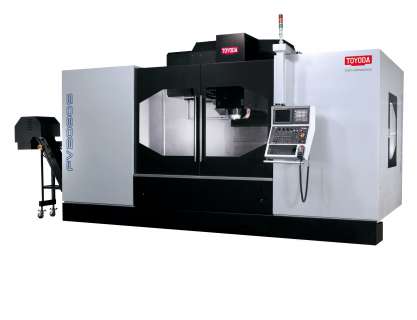

FV2090S
Improved heavy cutting with unrestrained power

Improved heavy cutting with unrestrained power
Pallet dimensions		: 1,950 x 900 - 2,150 x 900	mm
Stroke	X - Axis	: 1800-2,000	mm
	Y - Axis	: 900	mm
	Z- Axis	: 900-1050	mm
Spindle speed		: 15 ~ 6,000 [15 ~ 10,000 ]	min-1
