GEAR SKIVING CENTERS

JTEKT's Gear Skiving Centers original technology support all manufacturer to achieve high productivity with simultaneously achieving high-speed, high- capability and stable high accuracy with quality achieved by a suitable machine size for mass - production lines.

SEARCH BY INDUSTRY​

A VERSATILE LINE - UP OF​ GEAR SKIVING CENTERS

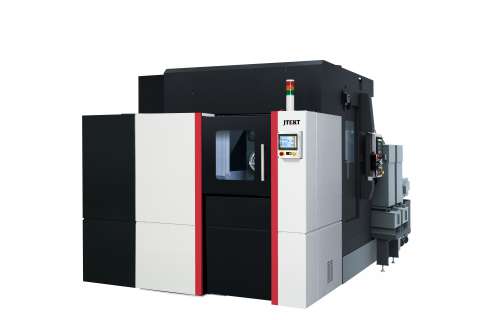

GS200H

GS200H
High Productivity and quality achieved by a suitable machine size for mass-production.


High Productivity and quality achieved by a suitable machine size for mass-production lines

Max.workpiece diameter:  Ø30 - Ø220 [ Ø50 - Ø220 ]mm
StrokeX - axis:  470mm
 Y - axis:  360mm
 Z- axis:  620mm
 Spindle speed:  6,000min-1

VIEW MODEL​

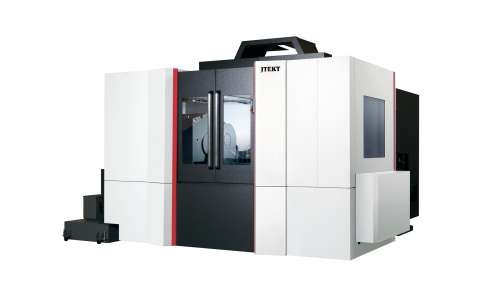

GS700H

GS700H
Integrated machining of large diameter and large module gears into one machine.



Integrated machining of large diameter and large module gears into one machine

Max.Workpiece diameter: Ø250 - Ø700 mm
StrokeX - axis:  900mm
 Y - axis:  850mm
 Z- axis:  900mm
 Spindle speed:  6,000min-1

VIEW MODEL​
