The GE3i-HYPER is high productivity includes a high power specification that enable grinding on the same level as the GE4i mode (one class above), within the installation floor space of GE3i. Maintain higher rigidity than the GE3i, and reduce the time for rough grinding of carbide tools.
| SPECIFICATION |
|---|
| DETAIL | UNIT | GE3i-HYPER |
| Distance between centers | mm | 250 |
| Swing over table | mm | Ø200 |
| Grinding diameter | mm | Ø0 ~ Ø60 |
| Load mass between centers | kg | 20 *1 |
| Wheel | ||
| Wheel OD x ID | mm | Ø355 x Ø127 |
| Max. Wide |
mm | 38 [50] |
| Surface speed | m/s | 45 (with inverter) |
The specification may be restricted according to the tooling of customer.
*1: Maximum live spindle load for live / dead spindle workhead (option) is 10 kg (including workpiece and workpiece holder).
High power specification achieves high - efficiency grinding

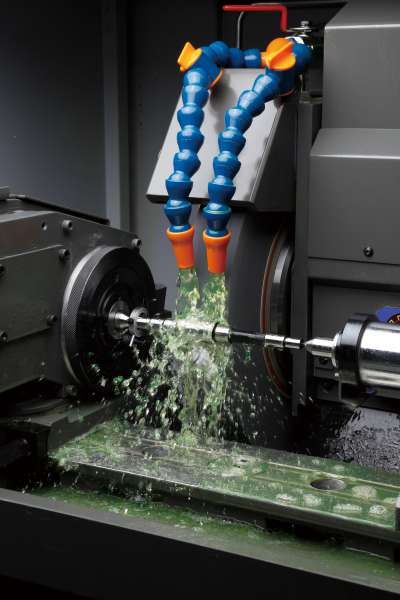

Optimal for carbide work-pieces grinding
• Increased wheel spindle rigidity
• High-output wheel spindle motor
• Increased work-head rigidity
Increase device longevity
• Improved durability of ball screws and bearings
