The GC32M-63 and GC32M-120 are the linear motor drive C-X controlled cam profiling mechanism with wheel head traverse construction, realizing the world's highest productivity with the simplified high precision grinding ensures high-quality work surface by using the minimal floor space requirement raises the productivity of machine line.
| SPECIFICATION |
|---|
| ITEMS | UNIT | GC32M - 63 | GC32M - 120 |
| Swing over table | mm | Ø320 | Ø320 |
| Distance between centers | mm | 630 | 1,200 |
| Grinding diameter | mm | Ø10 ~ Ø300 | Ø10 ~ Ø300 |
| Grinding wheel | |||
| OD | mm | Ø350 [Ø100, Ø150, Ø250] | Ø350 [Ø100, Ø150, Ø250] |
| Surface speed | m/s | 160 [80, 200] | 160 [80, 200] |
| Workhead | |||
| Maximum spindle speed | min¯¹ | 500 | 500 |
| Drive motor | |||
| Wheel spindle | kW | 31 (Max. 75) [15] | 31 (Max. 75) [15] |
| Machine weight | kg | 14,000 | 16,000 |
*The specifications may be restrained according to the accessories and the tooling of customer.

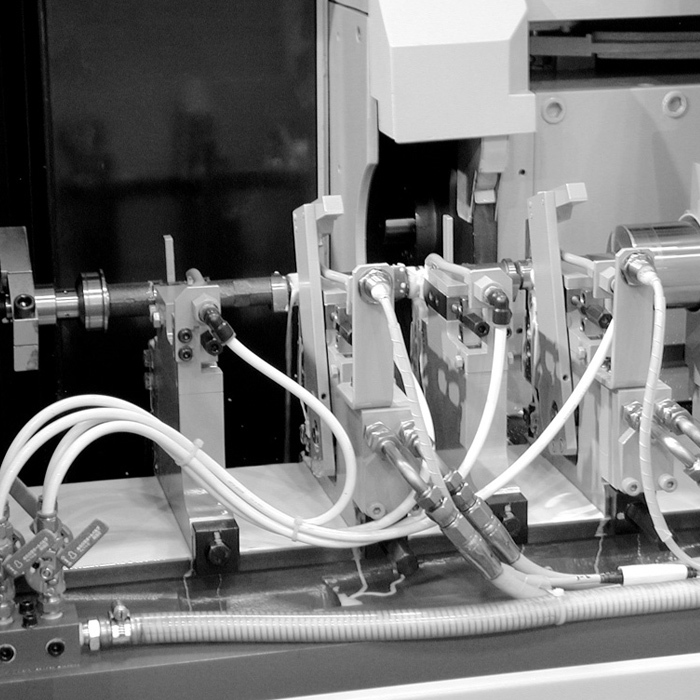

Linear motor drive C-X controlled cam profiling mechanism, Wheel head traverse construction
Production & Precision
• Realizing the World's Highest Productivity
• Simplified high precision grinding ensure high-quality work surface
• JTEKT STAT BEARING
Compact & Simple Operation
• The minimal floor space requirement raises the productivity of machining line

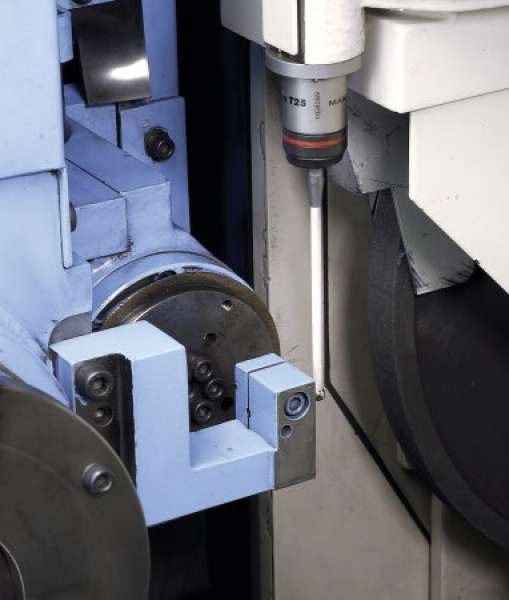

• The wheel position memory and cycle to eliminate runout are totally automated, reducing operating errors
• The intelligent - oriented functions simplify the and ensure higher accuracy
• Simplified changeover
Reliable Operation
• Reliable design to support enhanced speed
• Enhance functions to monitor the state of the machine
Environmentally - friendly

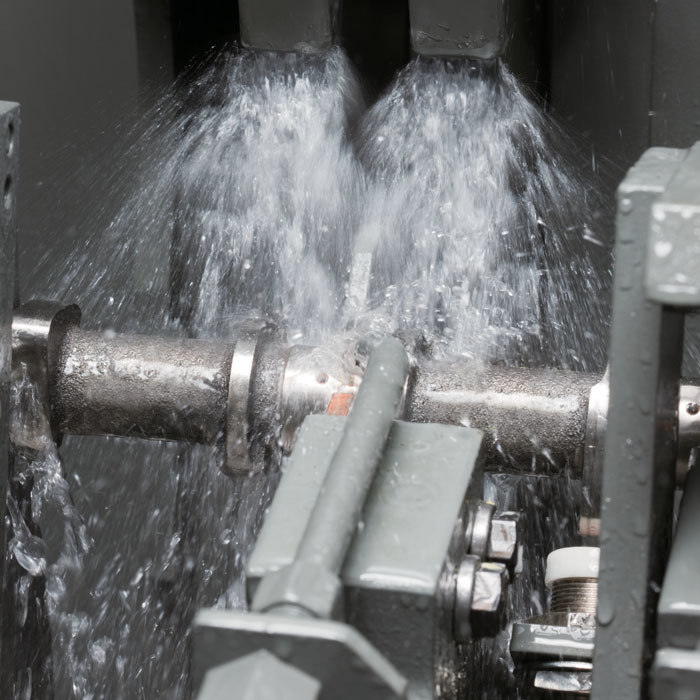

• 50-percent reduction in coolant supply amount
