GF32Mi

The GF32Mi is a high-accuracy with stable high - grade grinding assuring a high quality grinding surface with high -response wheelhead feed mechanism and high- response servo system combination with high-rigidity bed reducing thermal displacement and improvement and improving chattering accuracy.

AVAILABLE MACHINE SEARCH BY INDUSTRY

SPECIFICATION

ITEMS	UNIT	GF32Mi-35/63
Swing over table	mm	Ø320
Distance between centers	mm	350/630
Grinding diameter	mm	Ø35 ~ Ø70
CBN wheel
OD	mm	Ø430
Maximum width	mm	45
Surface speed	m/s	120 [ 80 ]
Wheelhead
Minimum input increment	mm	Ø0.0001
Drive motor
Wheel spindle	kW	22 [30]
Machine weight	kg	11,500

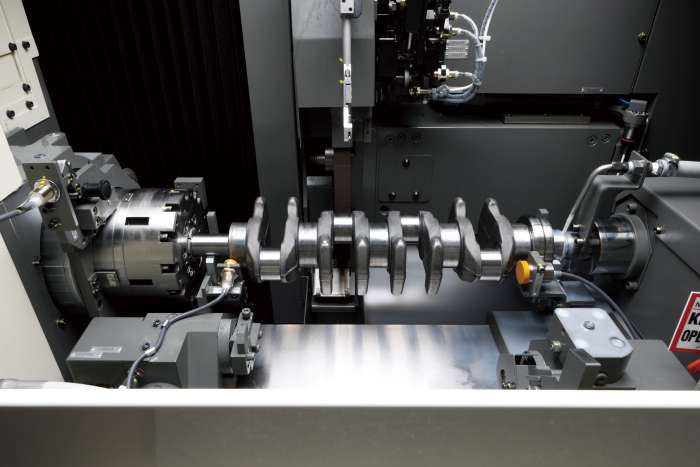

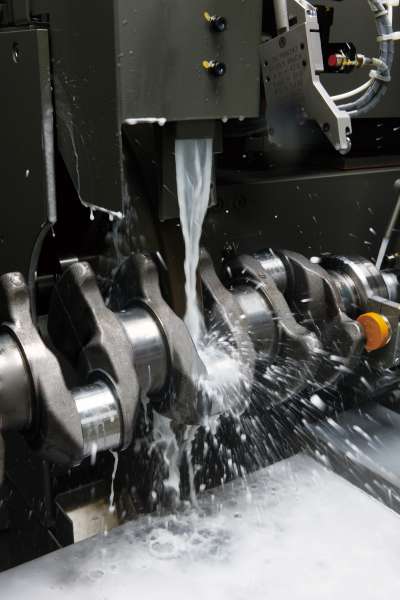

Latest crankshaft pin grinders with linear motor drive

High - accuracy
• High-accuracy grinding promising a high accuracy grinding surface.
• High-rigidity bed reducing thermal displacement and improving chattering accuracy.

Improvement of productivity
• Supports drive section diameter difference due to automatic center distance adjustment and wide range chuck
• Rich selection of grinding methods achieving machining flexibility

Reassuring operation
• Improved reliability with TOYOPUC-GC70

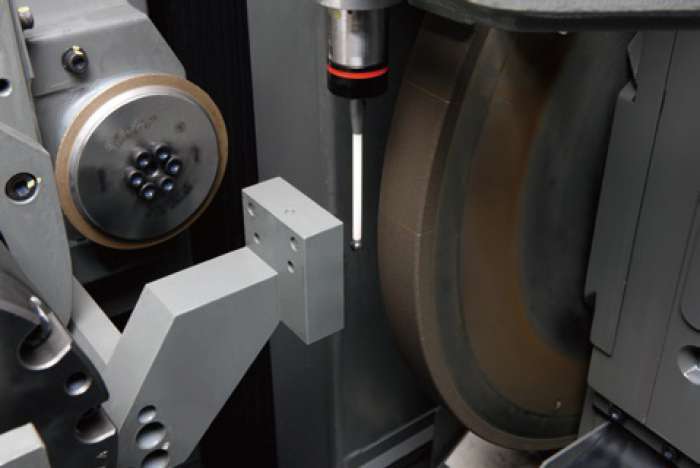

• Simplification of wheel replacement.
