GF50MS/GF50MH

GF50MS/GF50MH is the stable grinding accuracy with C-X 2 axis control grider method  to improve journal roundness, Improvement of productivity and support multi-variety production no need for setup change due to a pin phase indexing system.


AVAILABLE MACHINE SEARCH BY INDUSTRY
SPECIFICATION
ITEMSUNITGF50MS - 70T
GF50MH - 70T
 Swing over table
mm
Ø500
Ø500
Distance between centers
mm
700
700
Grinding diameter
mm
Ø35 ~ Ø85
Ø35 ~ Ø85
Max.work diameter
mm
Ø220
Ø220
Grinding wheel



     OD
mm
Ø650
Ø650
     Surface speed
m/s
120
120 [ 150 ]
Wheelhead



     Minimum input increment
mm
Ø0.0001
Ø0.0001
Workhead


     Max.spindle speedmin-1250250
Drive motor



     Wheel spindlekW
31 (4P) Built-in motor
31 (4P) Built-in motor
     Machine weight
kg
18,500
18,500

 *The specifications may be restrained according to the accessories and the tooling of customer.

A twin wheel crankshaft grinding machine offering high accuracy, maximized productivity and superior flexibility

Stable grinding accuracy

   •  C-X  2-axis simultaneous control grinding method
     •  Improved roundness of journal portion
     •  Isolation cover that block out heat

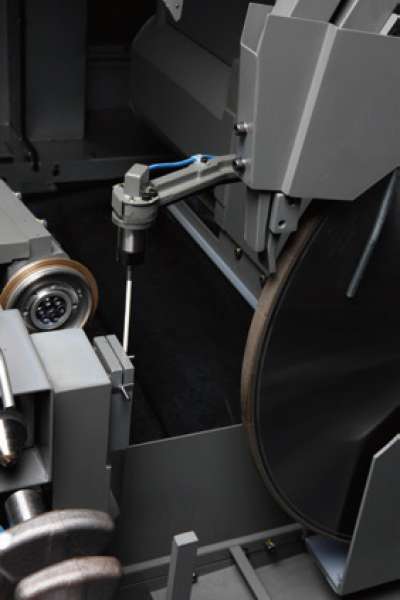

     •  Improvement of roundness with an exact grinding wheel diameter

Increase in productivity

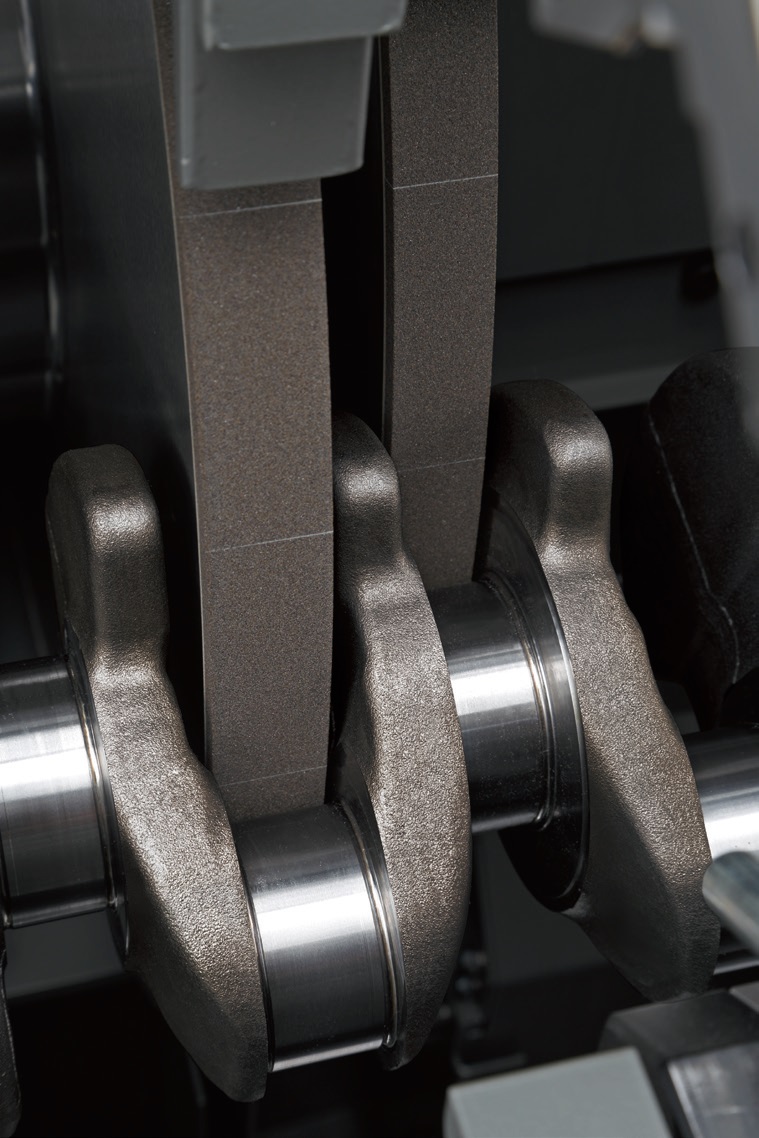

     •  Reduce no. of grinding steps due to closer proximity between the left and right wheels
     •  Improved rigidity of the workpiece support portion
     •  High-speed wheelhead travers feed [ GF50MH ]
     •  wheelhead traverse static slide [ GF50MH ]

Support for Multiple type of grinding

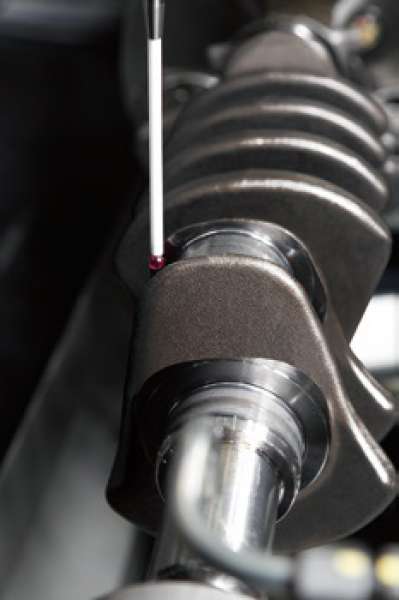

     •  Reduce set-up changeover due to a pin phrase indexing system
     •  Reduced set-up changeover required for multi workpiece types
     •  Variety of grinding methods
     •  New shoulder truing method
