GL32Mi-35/63

GL32Mi-35/63 is the high-accuracy with high-rigidity bed reducing thermal displacement and improving chattering accuracy. In order to achieve high accuracy girding over long periods of time, the bed support the moving area has been given sufficient rigidity through utilization of analysis technology and this model has designed with consideration to frequency characteristics and heat displacement featuring with the original JTEKT STAT BEARING.

AVAILABLE MACHINE SEARCH BY INDUSTRY

SPECIFICATION

ITEMS	UNIT	GL32Mi-35/63
Swing over table	mm	Ø320
Distance between centers	mm	350 / 630
Center height	mm	1,120
Grinding diameter	mm	Ø10 ~ Ø150
CBN wheel
OD	mm	Ø350 [ Ø430 ]
Surface speed	m/s	120 [ 80 ]
Wheelhead
Minimum input increment	mm	Ø0.0001
Workhead
Maximum spindle speed	min¯¹	500 [ 1,000 ]
Machine weight	kg	10,500

*The specifications may be restrained according to the accessories and the tooling of customer
The mass production of small work-pieces

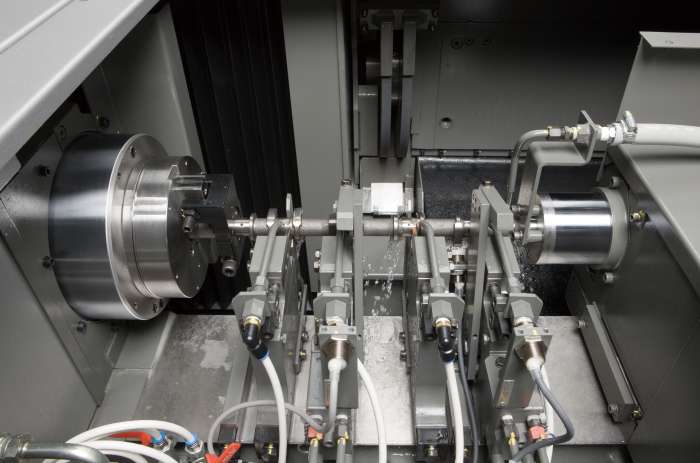

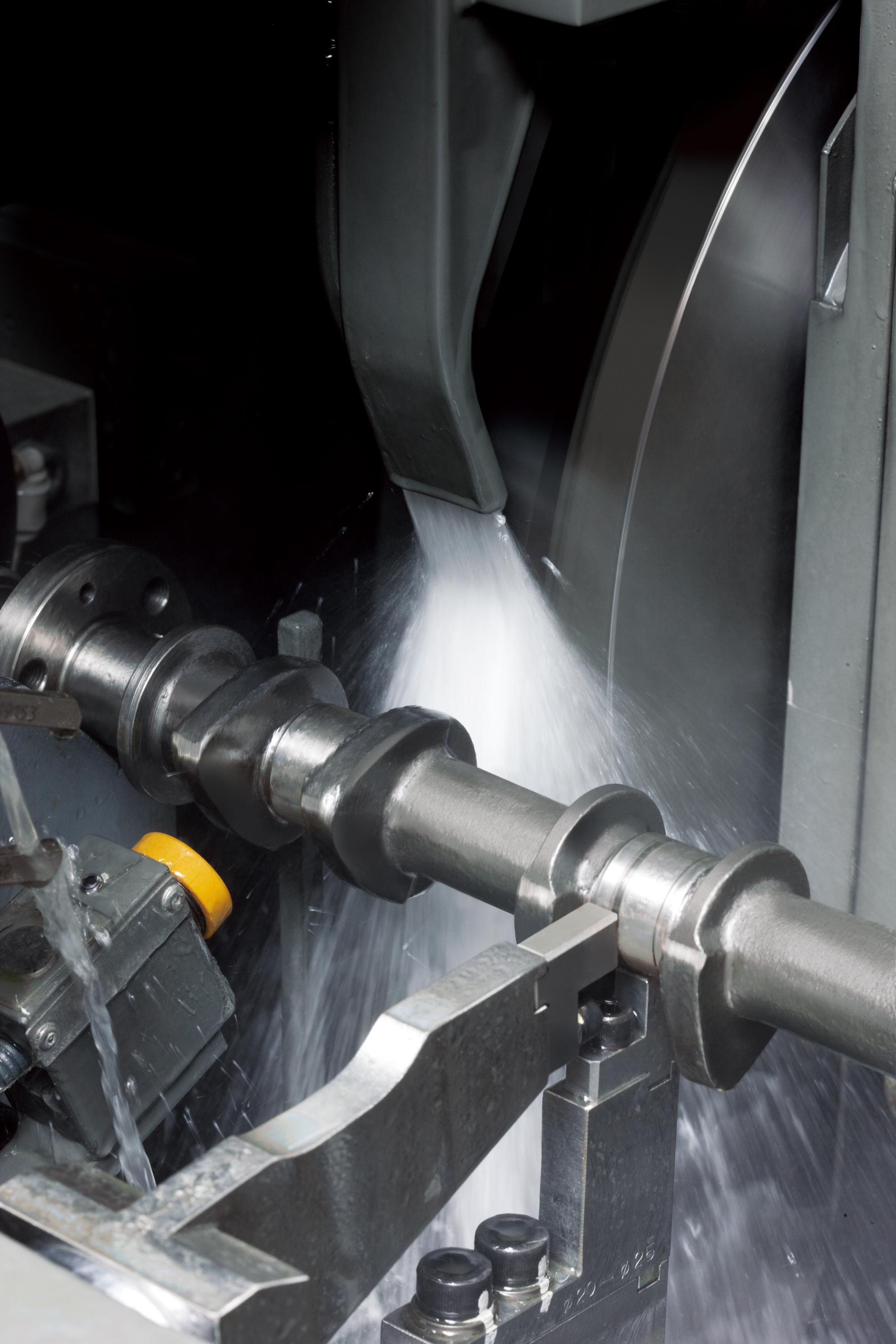

Best cylindrical grinder for cam and crank lines

High-accuracy
• High-rigidity bed reducing thermal displacement and improving chattering accuracy
• Featuring the original JTEKT STAT BEARING

Improvement of productivity
• Reduction of working time and truing time
• Safety automatic position memory

Reassuring operation

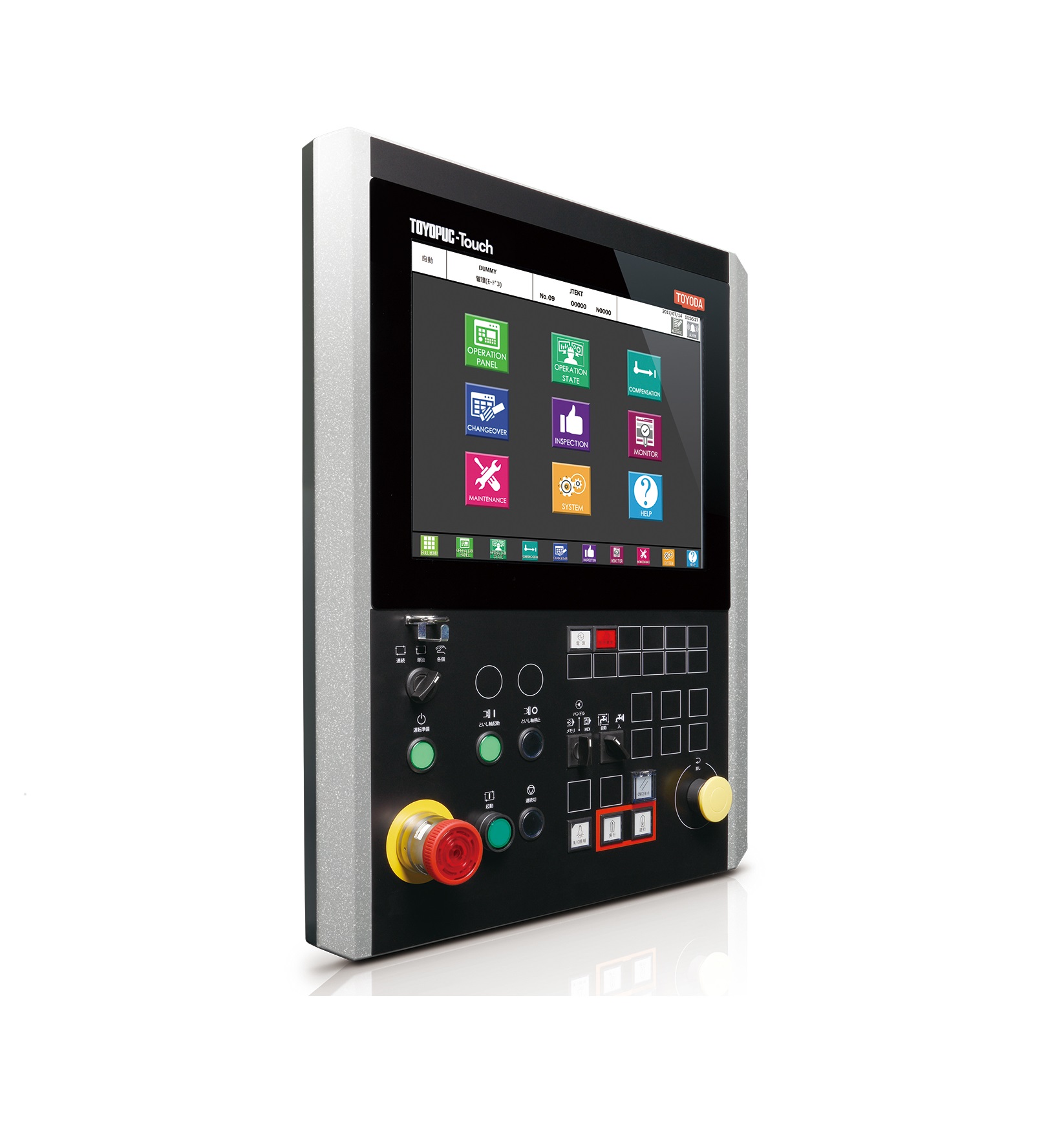

• HMI TOYOPUC-Touch of the IoE* era

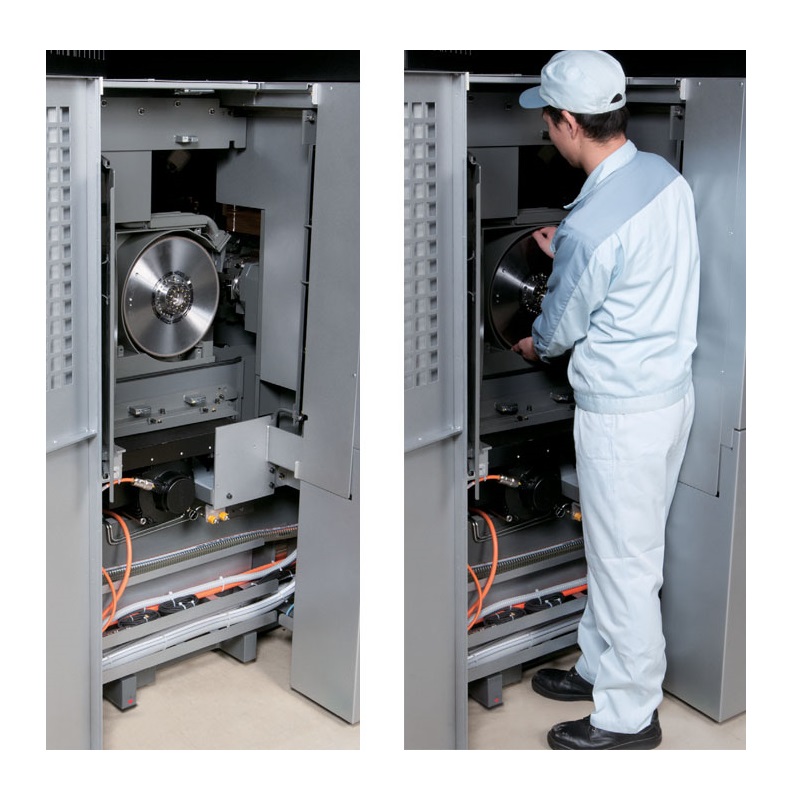

• Simplification of wheel replacement
