GT-011

Achieve high productivity with process integration that achieves 2 pins grinding in a single chuck (one loading / unloading), Flexible supporting effortless grinding of work-piece with differing eccentric amounts by mean of eccentric chuckless C-X grinding with high accuracy improved pin eccentric amount and phase accuracy with single chuck grinding.

AVAILABLE MACHINE SEARCH BY INDUSTRY

SPECIFICATION

ITEMS	UNIT	GT - 011
Height from floor to center middle	mm	1,080
Grinding diameter	mm	Ø5 ~ Ø30
Overall work-piece length	mm	250
Eccentric amount	mm	Maximum 15 ※ 1
Control unit	mm	GC50
CBN wheel
OD	mm	Ø250
Width (Max. width)	mm	30
ID	mm	Ø20
Surface speed	m/s	80

※ Eccentric amount ≤ grinding radius

Achieves High Productivity,
Easy set up change and High Accuracy Grinding

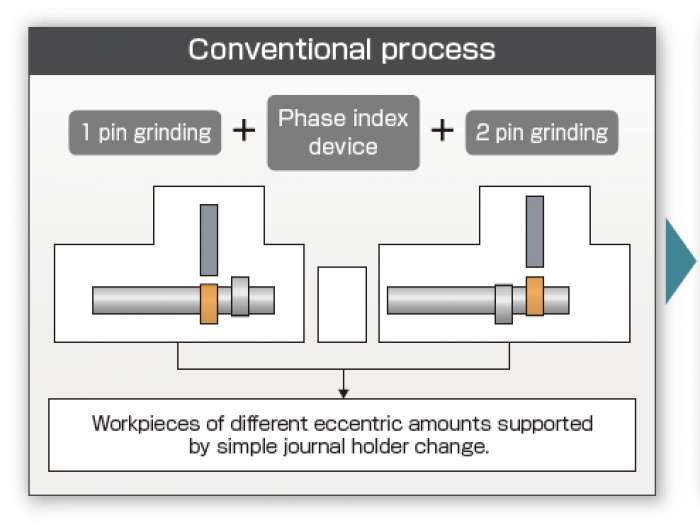

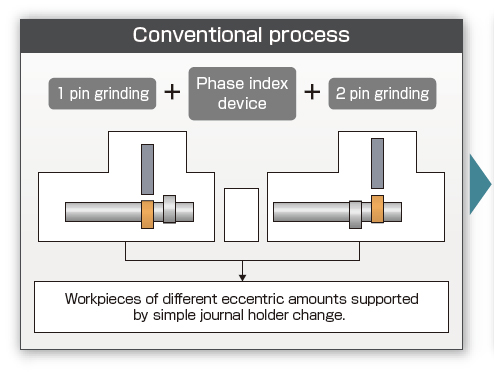

Process Integration

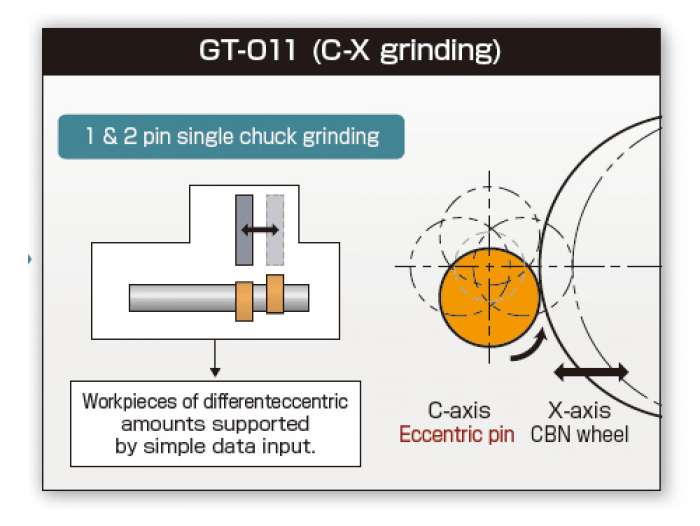

• Significantly shortens grinding time by mean of eccentric chunk-less C - X grinding and high speed grinding with wheel-head linear motor feed
• Line cost reduction

Flexible

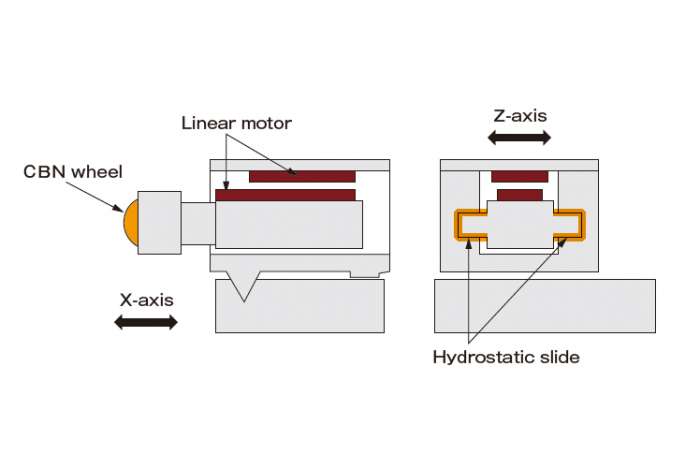

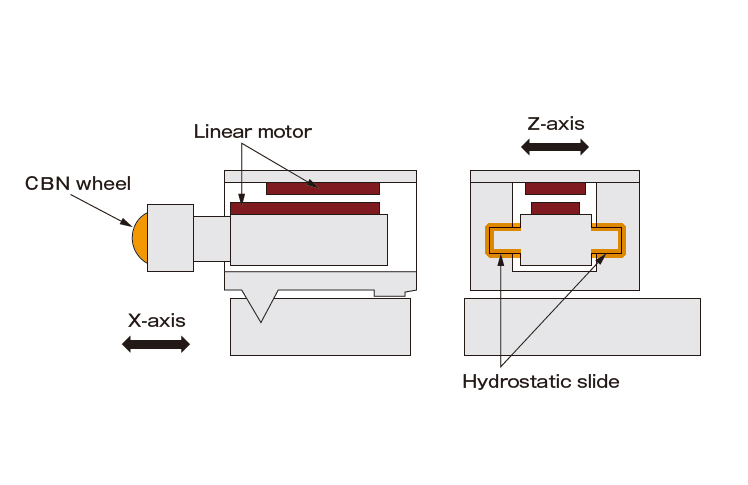

• Eccentric pin creation grinding with high speed, high precision C-X grinding JTEKT original CNC [GC50]

High Accuracy
• High precision wheel-head feed mechanism
• Automatic coordinate after dimension compensation with and auto sizer inside the machine

CYLINDRICAL GRINDERS

GT-011
