The highly reliable and best selling universal grinder, GOS32 / GOP32 Cylindrical grinder is the basic functions of cylindrical grinding, plunge grinding, traverse grinding, etc have been integrated into one machine. A line-up of 8 variations, from manual GOS Series to the universal and productive GOP series.
SPECIFICATION |
---|
ITEMS | MODEL | GOP series GOP32 x 50 | GOP series GOP32 x 100 | GOP series GOP32 x 150 | GOS series GOS32 x 50 | GOS series GOS32 x 100 | GOS series GOS32 x 150 |
Max. swing over table | mm | Ø320 | Ø320 | Ø320 | Ø320 | Ø320 | Ø320 |
Distance between centers | mm | 500 | 1,000 | 1,500 | 500 | 1,000 | 1,500 |
Grinding diameter | mm | Ø0 ~ Ø220 | Ø0 ~ Ø220 | Ø0 ~ Ø220 | Ø0 ~ Ø220 | Ø0 ~ Ø220 | Ø0 ~ Ø220 |
Max. load between centers | kg | Max. 150 | Max. 150 | Max. 150 | Max. 150 | Max. 150 | Max. 150 |
Wheel | |||||||
OD x Width x ID | mm | Ø405 x 75 x Ø127 *1 | Ø405 x 75 x Ø127 *1 | Ø405 x 75 x Ø127 *1 | Ø405 x 75 x Ø127 *1 | Ø405 x 75 x Ø127 *1 | Ø405 x 75 x Ø127 *1 |
Surface speed | m/s | 30 (45) | 30 (45) | 30 (45) | 30 | 30 | 30 |
Electrical Equipment | |||||||
Wheel spindle motor | kW | 3.7 (5.5) (4P) | 3.7 (5.5) (4P) | 3.7 (5.5) (4P) | 3.7 (4P) | 3.7 (4P) | 3.7 (4P) |
Machine mass | kg | 2,900 | 3,800 | 4,600 | 2,900 | 3,800 | 4,600 |
*Note: Values in red are for the 45M specification (wheel surface speed : 45 m/s)
** Specifications are different depending on grade. Specifications may be limited depending on customer's tooling.
*1 : straight type No.1 whee
Special Features

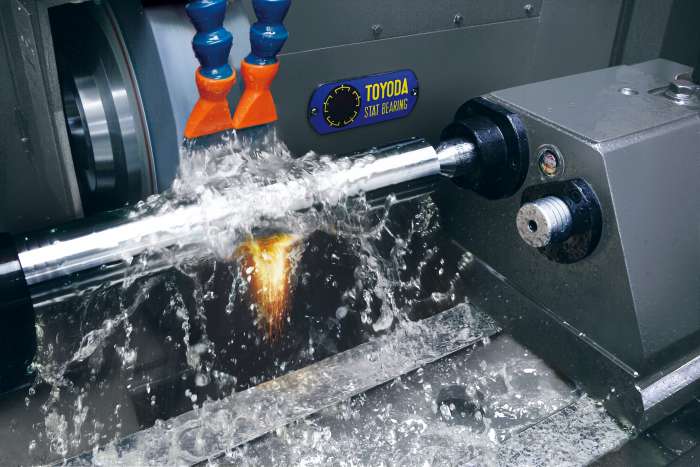

• Features the JTEKT STAT BEARING
• A hydraulic slide of high accuracy and smooth movement

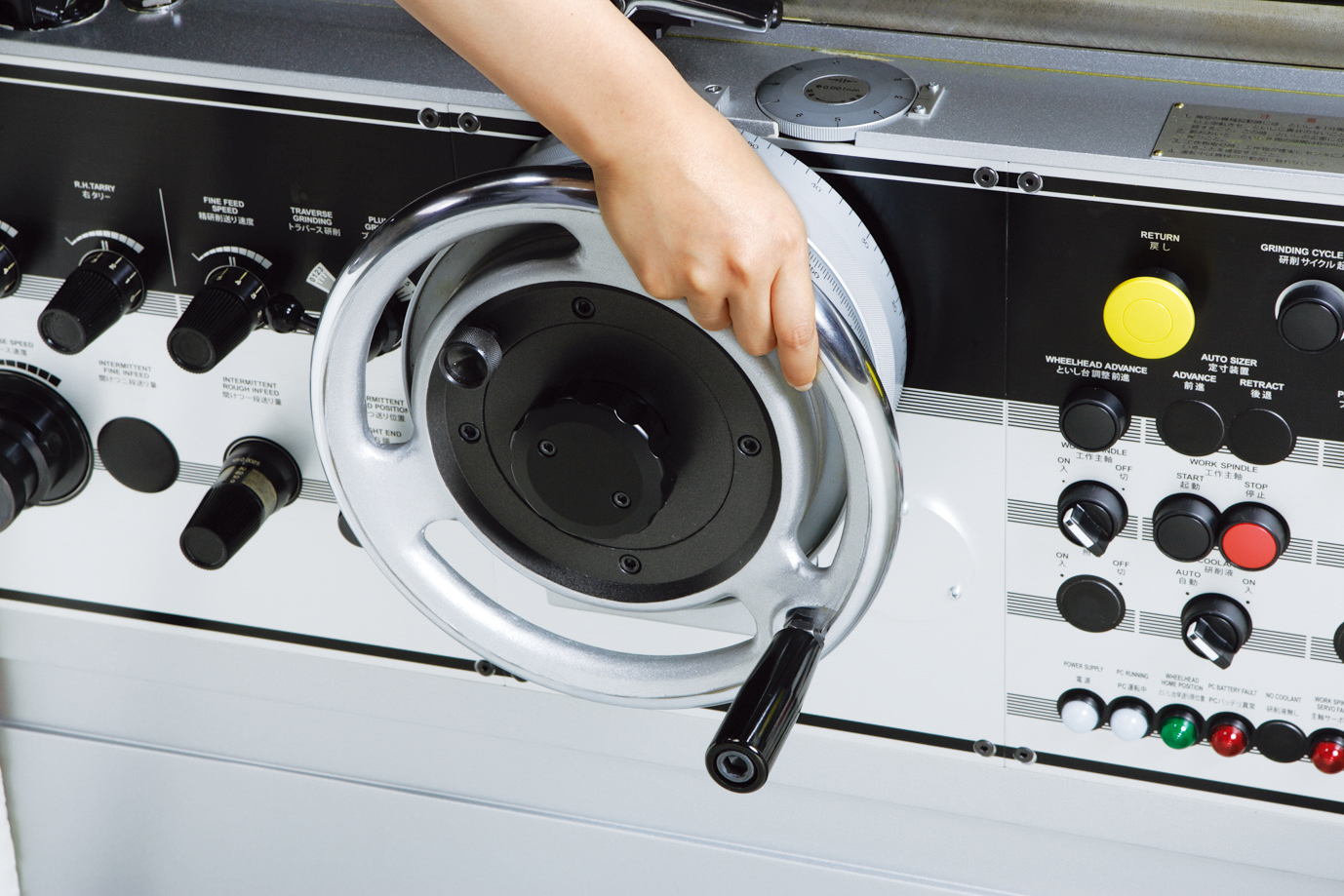

• Equipment arrangement best suited to manual grinding
Secured high-accuracy
• Wheel spindle rotation accuracy of 0.016 μm.
• Consistent machining accuracy means high reliable over long period of time.
Outstanding of operativity
• Capable of producing various types of work-piece in both small lots and mass-production
• Excellent flexibility to meet every operational requirement
Enhanced diversity
• Available in 12 types and grades with various options
• A line-up to met each user's various requirements
