GE4i

The GE4i features the patented JTEKT STAT BEARING floating plate ball nut to ensure high accuracy and positioning. This model is equipped with dual pulse generators and HMI TOYOPUC-Touch of the IoE* era control.

AVAILABLE MACHINE SEARCH BY INDUSTRY

SPECIFICATION

ITEMS	UNIT	GE4Pi - 50 GE4Ai - 50	GE4Pi - 100 GE4Ai - 100	GE4Pi - 150 GE4Ai - 150	GE4Pi - 200 GE4Ai - 200
Distance between centers	mm	500	1,000	1,500	2,000
Swing over table	mm	Ø320 [ Ø400 ] *1	Ø320 [ Ø400 ] *1	Ø320 [ Ø400 ] *1	Ø320 [ Ø400 ] *1
Grinding diameter	mm	Ø0 ~ Ø300	Ø0 ~ Ø300	Ø0 ~ Ø300	Ø0 ~ Ø300
Load mass between centers	kg	150 *2	150 *2	150 *2	150 *2
Wheel
Wheel OD x ID	mm	Type P: Ø405 x Ø127 Type A: Ø455 x Ø127 [ Type P only: Ø510 x Ø203.2 ]	Type P: Ø405 x Ø127 Type A: Ø455 x Ø127 [ Type P only: Ø510 x Ø203.2 ]	Type P: Ø405 x Ø127 Type A: Ø455 x Ø127 [ Type P only: Ø510 x Ø203.2 ]	Type P: Ø405 x Ø127 Type A: Ø455 x Ø127 [ Type P only: Ø510 x Ø203.2 ]
Surface speed	m/s	33 [45 ]	33 [45 ]	33 [45 ]	33 [45 ]
Wheelhead
Min. input increment	mm	Ø0.0001	Ø0.0001	Ø0.0001	Ø0.0001
Required floor space (width x depth) *3	mm	3,600 x 1,920	4,600 x 1,920	6,130 x 1,920	7,700 x 1,920

The specification may be restricted according to the tooling of customer.
*1 : The Ø400 mm swing specification is offered on a per-machine basis. Please consult with our sales department.
*2: Maximum spindle load for live / dead spindle workhead (option) is 40 kg (including workpiece and workpiece holder).
*3 : Subject to change depending on accessory parts, etc.
[ ] : Optional accessory

Taking Highly accuracy and user-friendly grinding to a new level

Long - term grinding accuracy

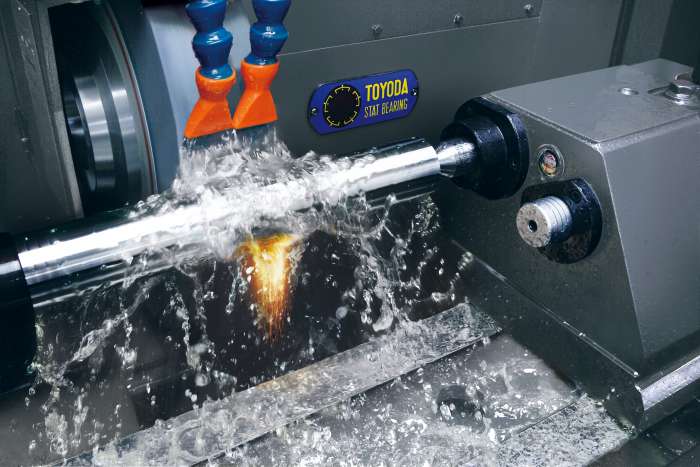

• JTEKT STAT BEARING
• High rigidity, low vibration bed
• High - accuracy feed mechanism
• Low thermal displacement bed
• Heat isolation cover

Simple and easy operation
• Displaying craftsmen skill - that is manual intervention
• Improved efficiency of single part grinding
• Conversational controls allow for ease of use

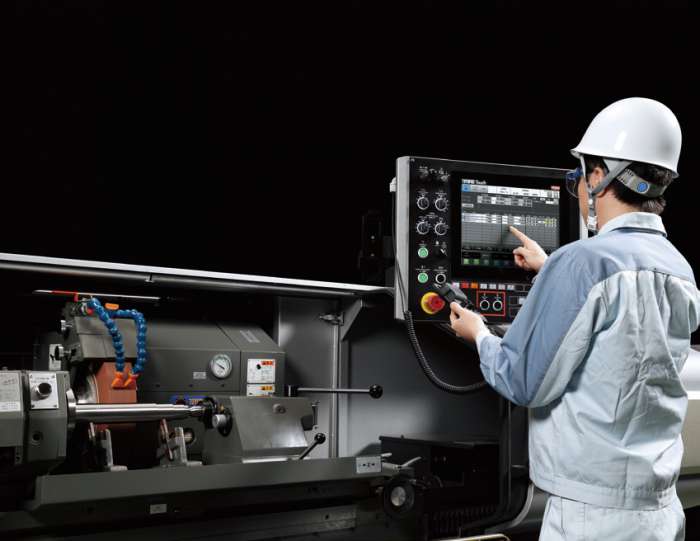

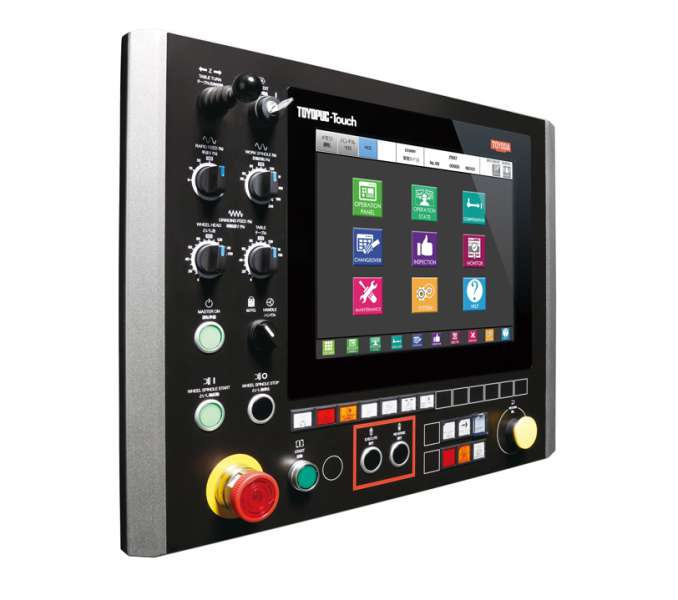

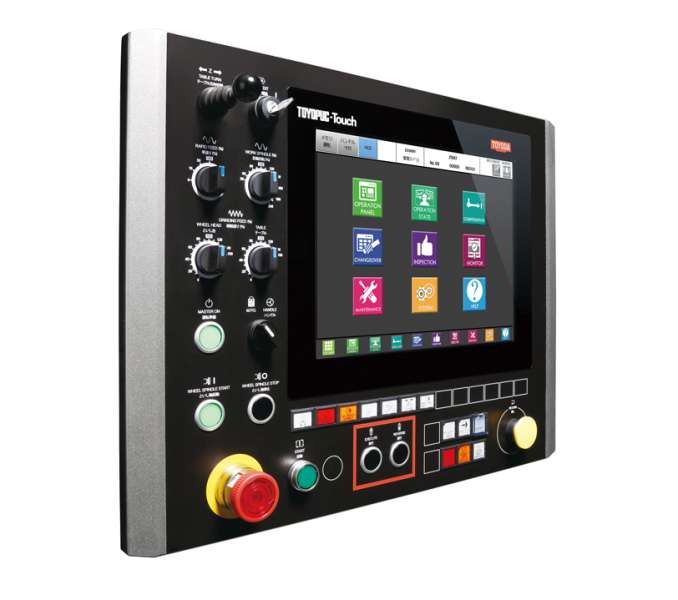

• HMI TOYOPUC-Touch of the IoE* era

Consideration of safety, reassurance and workability
• Excellent workability with a full cover
• Manual operations are possible with front face handle

CYLINDRICAL GRINDERS

GE4i
