The GE6i - PRO is specification created by professionals, utilizing expert craftsmanship, Excellent operability with handle operation that feels like a hydraulic machine ,This grinding optimal for high - accuracy machine of individual work-piece. A single GE6i-Pro enables skilled technicians to use the machine though it were hydraulic, and allow those with less experience to use it as an NC-controlled machine.
SPECIFICATION |
---|
ITEMS | UNIT | GE6i - 100PRO | GE6i - 160PRO | GE6i - 250PRO | GE6i - 320PRO | GE6i - 400PRO |
Distance between centers | ||||||
500 kg specifications | mm | 1,000 | 1,600 | 2,500 | 3,200 | 4,000 |
1,000 kg specifications | mm | 875 | 1,475 | 2,375 | 3,075 | 3,875 |
Swing over table | mm | Ø560 | Ø560 | Ø560 | Ø560 | Ø560 |
Grinding diameter | mm | Ø0 ~ Ø550 | Ø0 ~ Ø550 | Ø0 ~ Ø550 | Ø0 ~ Ø550 | Ø0 ~ Ø550 |
Max. Load between centers | kg | 500 [ 1,000 ] | 500 [ 1,000 ] | 500 [ 1,000 ] | 500 [ 1,000 ] | 500 [ 1,000 ] |
Wheel | ||||||
Wheel OD x ID | mm | Ø610 x Ø254 [ Ø760 x Ø304.8 ] | Ø610 x Ø254 [ Ø760 x Ø304.8 ] | Ø610 x Ø254 [ Ø760 x Ø304.8 ] | Ø610 x Ø254 [ Ø760 x Ø304.8 ] | Ø610 x Ø254 [ Ø760 x Ø304.8 ] |
Surface speed | m/s | 33 [ 45 ] | 33 [ 45 ] | 33 [ 45 ] | 33 [ 45 ] | 33 [ 45 ] |
Wheel spindle drive motors | kW | 11 (4P) | 11 (4P) | 11 (4P) | 11 (4P) | 11 (4P) |
Machine weight *1 | kg | 8,000 | 10,000 | 12,000 | 14,000 | 17,000 |
The specification maybe restricted according to the tooling of customer.
*1: Subject to change depending on accessory parts, etc.

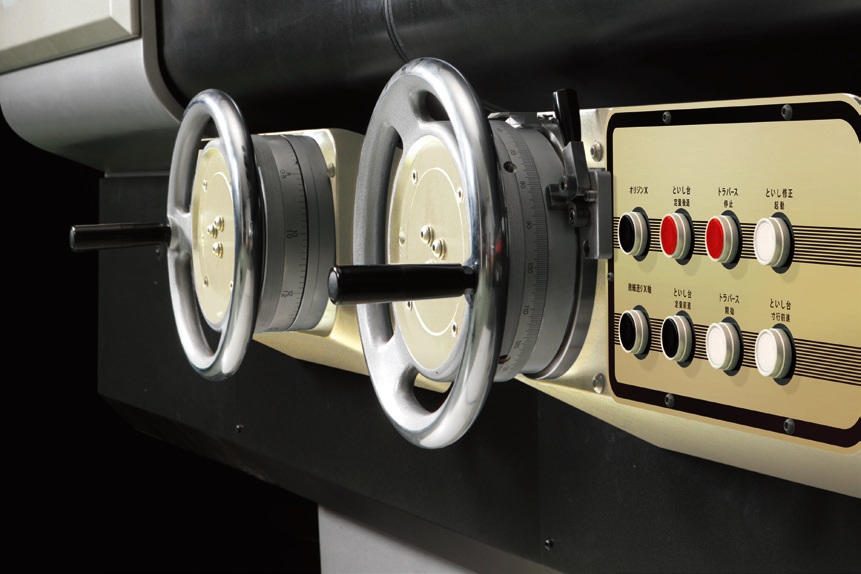

Pursuit each of operation- Professional handle
• Achieved hydraulic machines operability using an NC machine

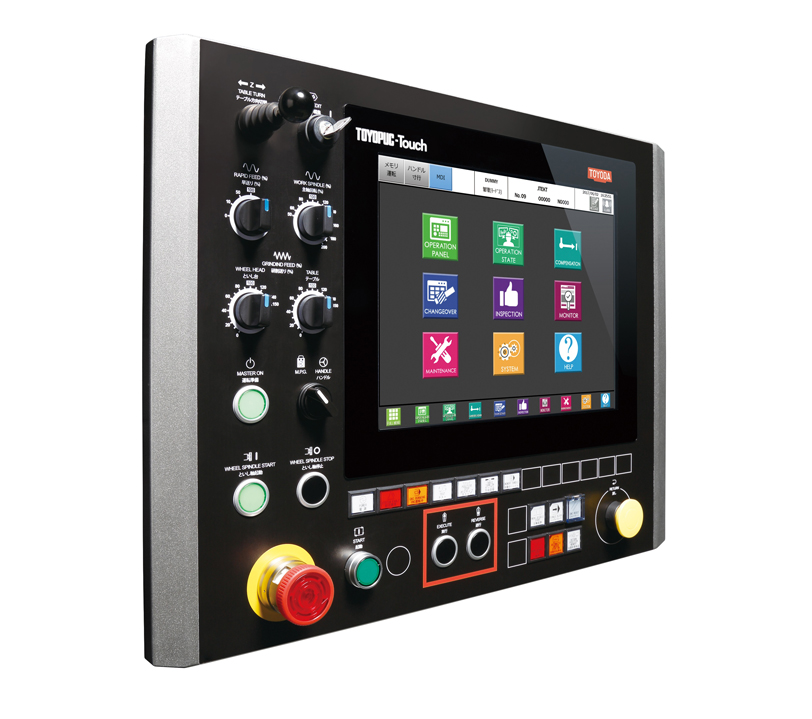

• Customizable front operation panel
Enable high grade"monozukuri" that can be by any operator
• Improve efficiency for single-part grinding
• Specialized screen display for handle operation
