FV1165S

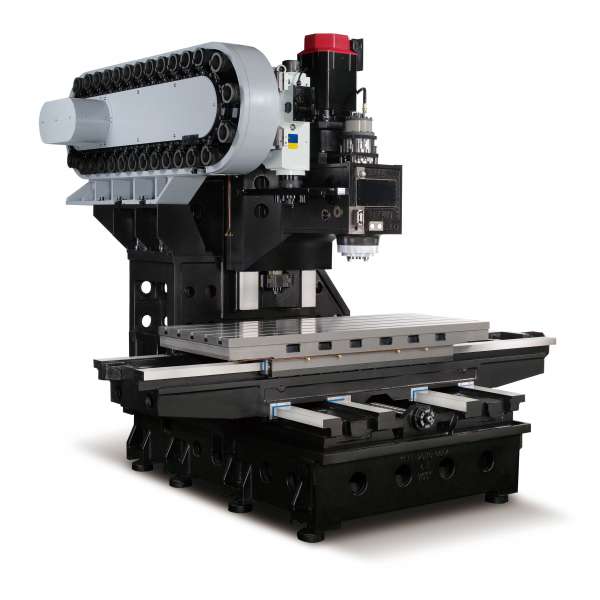

The FV1165S is a heavy - duty vertical machining centers that be able to make the rigidity and accuracy of machine even higher through the integration of sharpened technology with highly - rigid box slide which is the most portion of the machine tool. On this model we have used a box slide that places particular emphasis in rigidity and 4- slide base is used on the Y - axis which support both the table and the X-axis slide base to achieve a high rigidity.

AVAILABLE MACHINE SEARCH BY INDUSTRY

SPECIFICATION

ITEMS	UNIT	FV1165S No.40	FV1165S No.50
Table
Working area dimension	mm	1,300 X 650	1,300 X 650

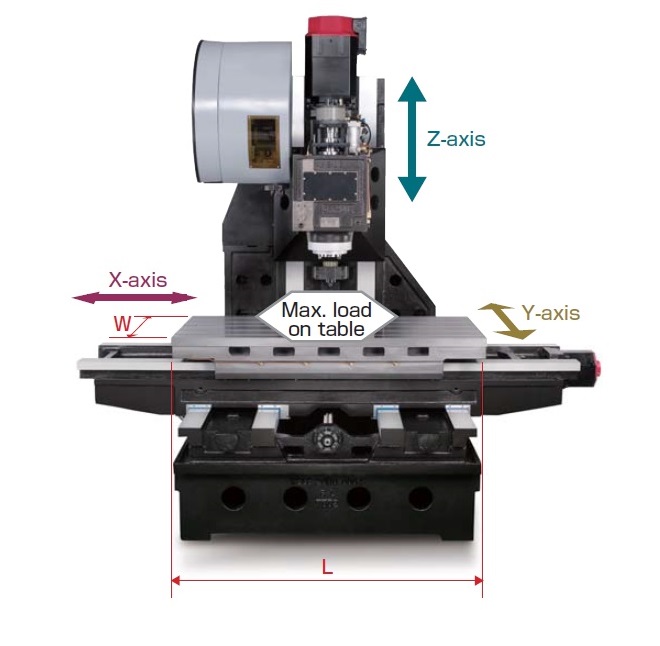

Stroke
X-axis stroke (Table left-right movement)	mm	1,100	1,100
Y-axis stroke (Saddle forward-back movement)	mm	650	650
Z-axis stroke (Spindle-head vertical movement)	mm	600	600
Feeds
Rapid feed rate (X, Y, Z)	m/min	30 / 30 / 24	30 / 30 /24
Spindle
Spindle speed	min¯¹	15 ~ 8,000 [ 15 ~ 12,000 ]	15 ~ 6,000 [ 15 ~ 10,000 ]
Spindle nose shape	—	BBT40	BBT50
ATC
ATC Tool holding capacity	tool	32 [ 60 ]	30 [ 40 ]

[ ] : Optional

High rigidity box slide machine suiting all kinds of manufacturing

Standard Feature
• Highly - rigid box slide at all axes
• High-rigidity united box slide
• 4-slide Y-axis with little overhang
• Wide machine range

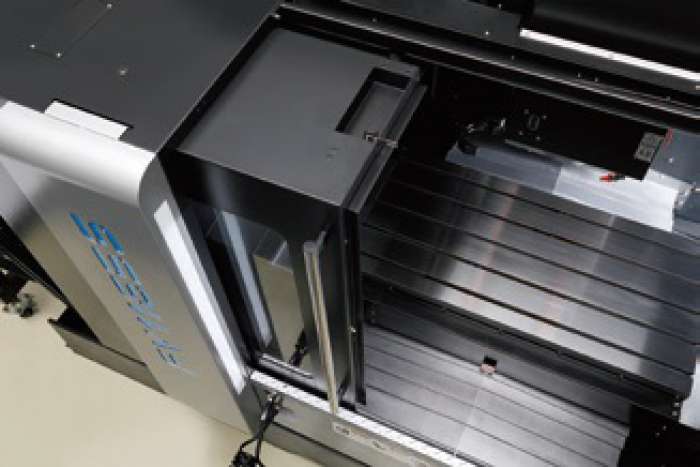

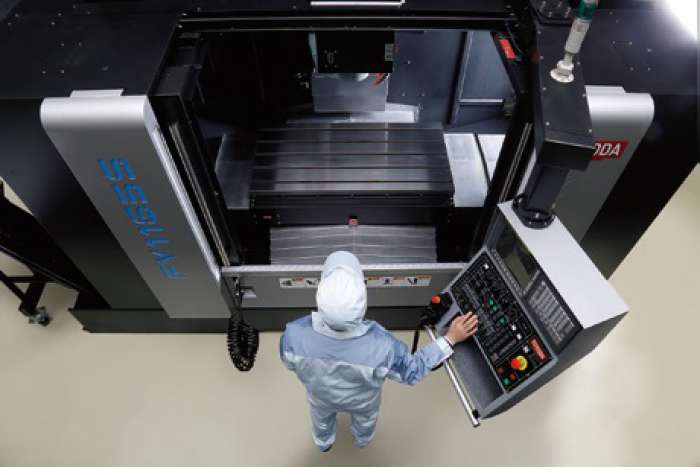

• User-friendly with good work-ability for the operator with wide working area
• Abundant standard accessory
