The FV1365S is a heavy - duty vertical machining centers that be able to make the rigidity and accuracy of machine even higher through the integration of sharpened technology with highly - rigid box slide which is the most portion of the machine tool. On this model we have used a box slide that places particular emphasis in rigidity and 4- slide base is used on the Y - axis which support both the table and the X-axis slide base to achieve a high rigidity.
| SPECIFICATION |
|---|
| ITEMS | UNIT | FV1365S No.40 | FV1365S No.50 |
| Table | |||
| Working area dimension | mm | 1,450 X 650 | 1,450 X 650 |

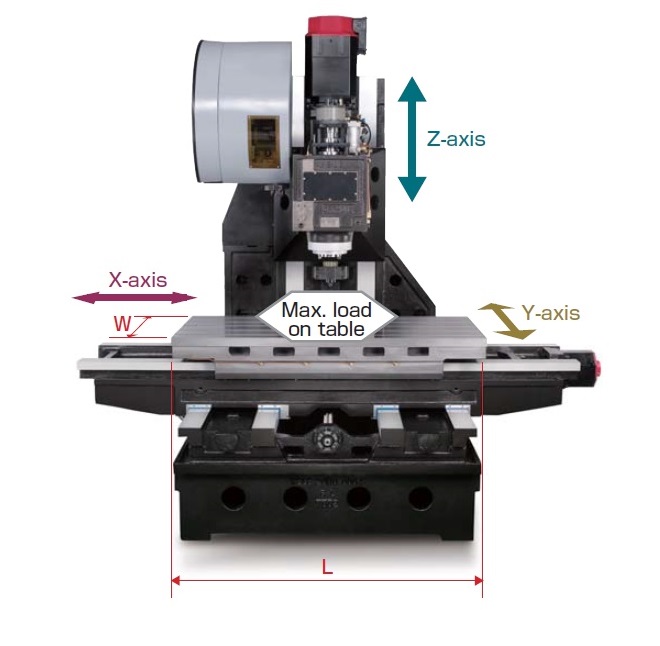

| Stroke | |||
| X-axis stroke (Table left-right movement) | mm | 1,300 | 1,300 |
| Y-axis stroke (Saddle forward-back movement) | mm | 650 | 650 |
| Z-axis stroke (Spindle-head vertical movement) | mm | 600 | 600 |
| Feeds | |||
| Rapid feed rate (X, Y, Z) | m/min | 30 / 30 / 24 | 30 / 30 /24 |
| Spindle | |||
| Spindle speed | min¯¹ | 15 ~ 8,000 [ 15 ~ 12,000 ] | 15 ~ 6,000 [ 15 ~ 10,000 ] |
| Spindle nose shape | — | BBT40 | BBT50 |
| ATC | |||
| ATC Tool holding capacity | tool | 32 [ 60 ] | 30 [ 40 ] |
[ ] : Optional
High rigidity box slide machine suiting all kinds of manufacturing
Standard Feature
• Highly - rigid box slide at all axes
• High-rigidity united box slide
• 4-slide Y-axis with little overhang
• Wide machine range

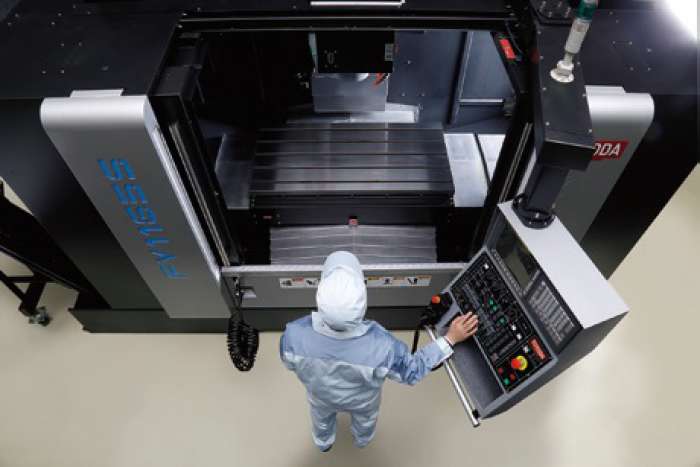

• User-friendly with good work-ability for the operator with wide working area
• Abundant standard accessory
