JTEKT

FV1480S

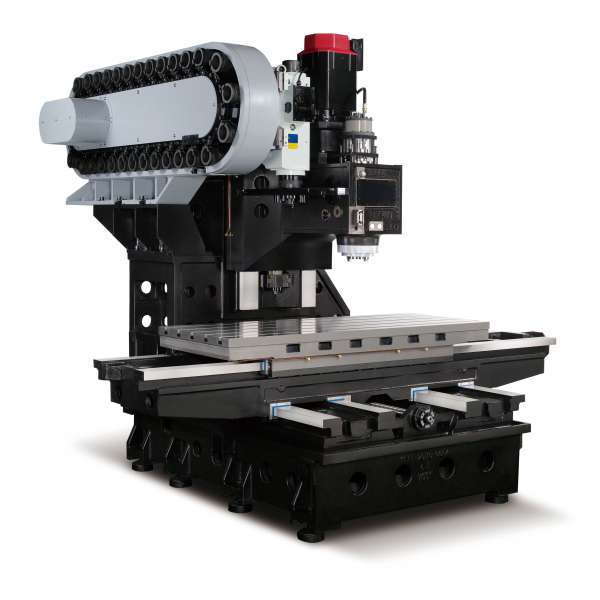

The FV1480S is a heavy - duty vertical machining centers that be able to make the rigidity and accuracy of machine even higher through the integration of sharpened technology with highly - rigid box slide which is the most portion of the machine tool. On this model we have used a box slide that places particular emphasis in rigidity and 4- slide base is used on the Y - axis which support both the table and the X-axis slide base to achieve a high rigidity.

AVAILABLE MACHINE SEARCH BY INDUSTRY

SPECIFICATION

ITEMS	UNIT	FV1480S No.50
Table
Working area dimension	mm	1,550 X 800

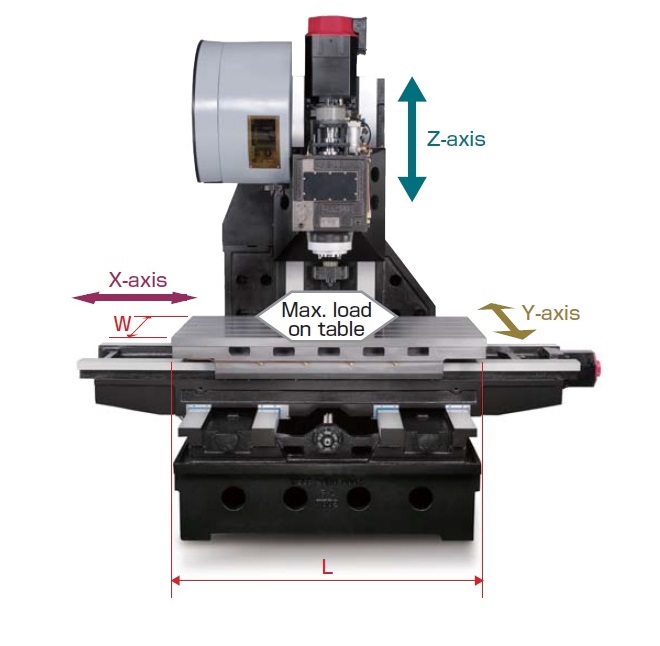

Stroke
X-axis stroke (Table left-right movement)	mm	1,400
Y-axis stroke (Saddle forward-back movement)	mm	800
Z-axis stroke (Spindle-head vertical movement)	mm	700
Feeds
Rapid feed rate (X, Y, Z)	m/min	24 / 24 / 18
Spindle
Spindle speed	min¯¹	15 ~ 6,000 [ 15 ~ 10,000 ]
Spindle nose shape	—	BBT50
ATC
ATC Tool holding capacity	tool	30 [40]

[ ] : Optional

High rigidity box slide machine suiting all kinds of manufacturing

Standard Feature
• Highly - rigid box slide at all axes
• High-rigidity united box slide
• 4-slide Y-axis with little overhang
• Wide machine range

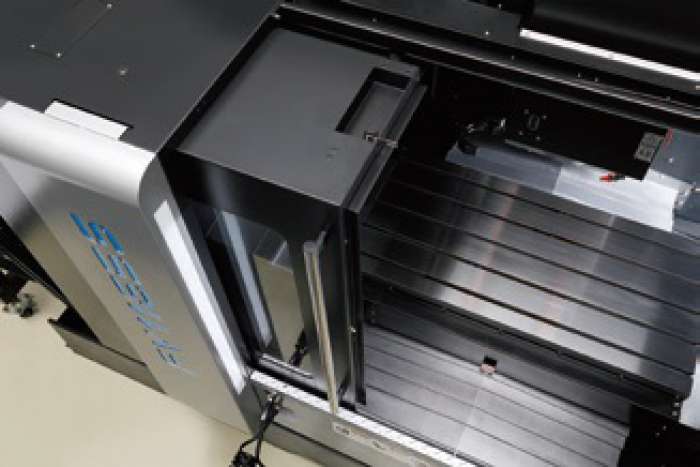

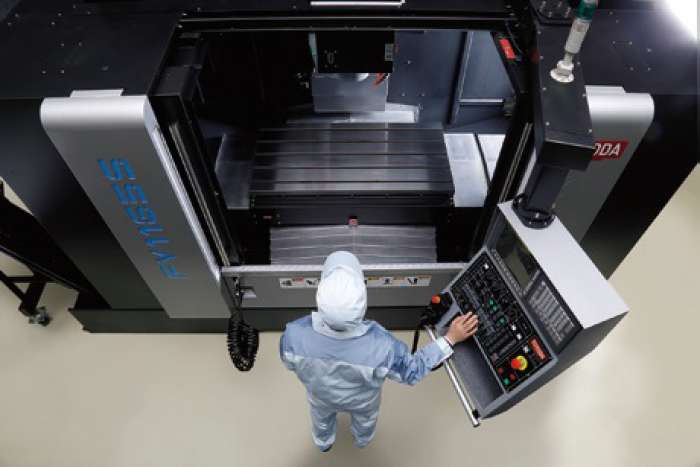

• User-friendly with good work-ability for the operator with wide working are
• Abundant standard accessory
