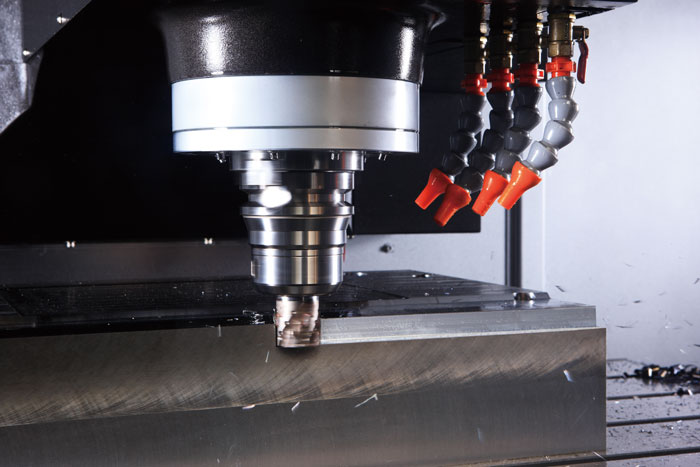

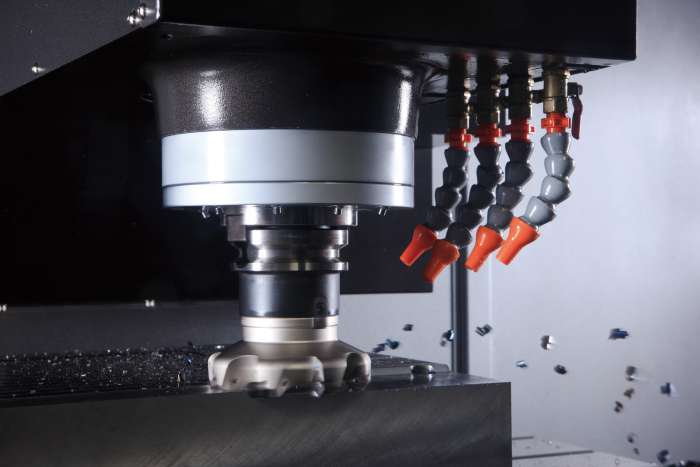

FV2090S is the high rigidity and heavy duty cutting vertical machining centers that be able to make the rigidity and accuracy of the large machine even higher through the integration of sharpened technology to improve heavy cutting with unrestrained power with Y- axis hybrid slide & dual ball - screw and 4 - slide Y-axis with little overhang.
| SPECIFICATION |
|---|
| ITEMS | UNIT | FV2090S No.40 |
| Table | ||
| Working area dimension | mm | 2,150 X 900 |
| Stroke | ||
| X-axis stroke (Table left-right movement) | mm | 2,000 |
| Y-axis stroke (Saddle forward-back movement) | mm | 900 |
| Z-axis stroke (Spindle-head vertical movement) | mm | 900 |
| Feeds | ||
| Rapid feed rate (X, Y, Z) | m/min | 20 / 20 / 18 |
| Spindle | ||
| Spindle speed | min¯¹ | 15 ~ 6,000 [ 15 ~ 10,000 ] |
| Spindle nose shape | — | BBT50 |
| ATC | ||
| ATC Tool holding capacity | tool | 30 [ 40 ] |
[ ] : Optional
Standard Feature
• Y-axis hybrid slide A dual ball-screw is used on the Y-axis feed mechanism

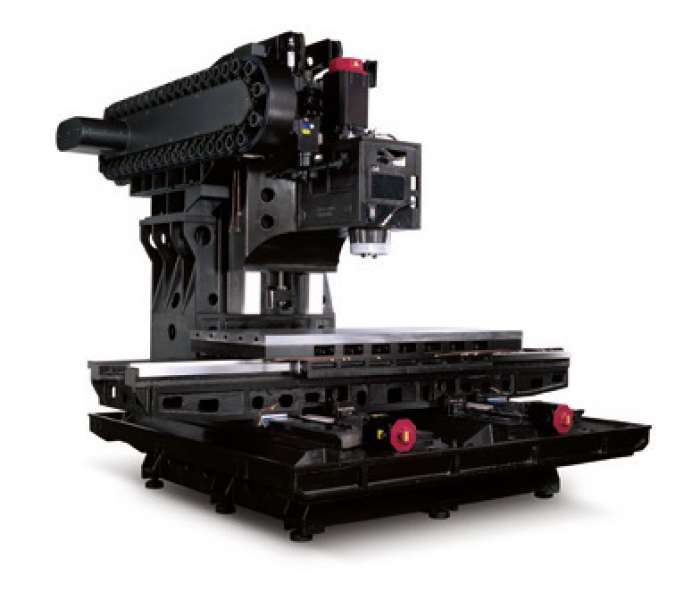

• 4 - slide Y- axis with little overhang by supporting the table and X-axis slide base with 4 Y-axis slide
• Wide machining range, Travel , table size and table loading mass are all the biggest in the class

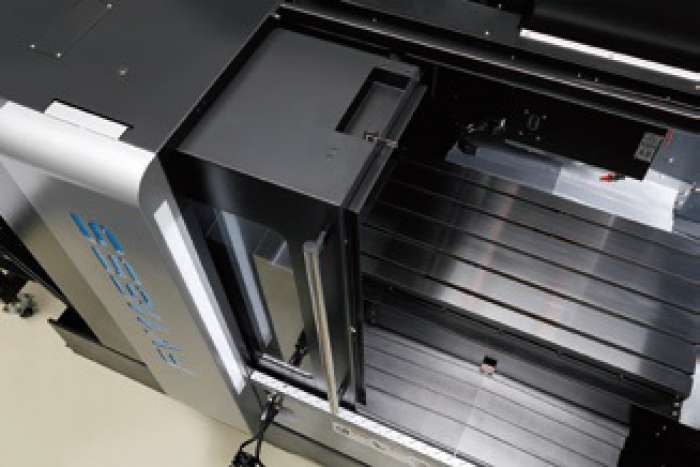

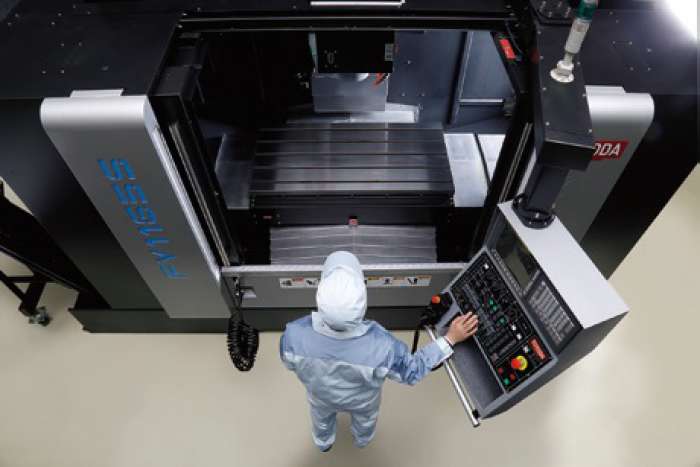

• User-friendly with good work - ability for the operator with wide working area
• Abundance standard accessories
