FH800SX-i

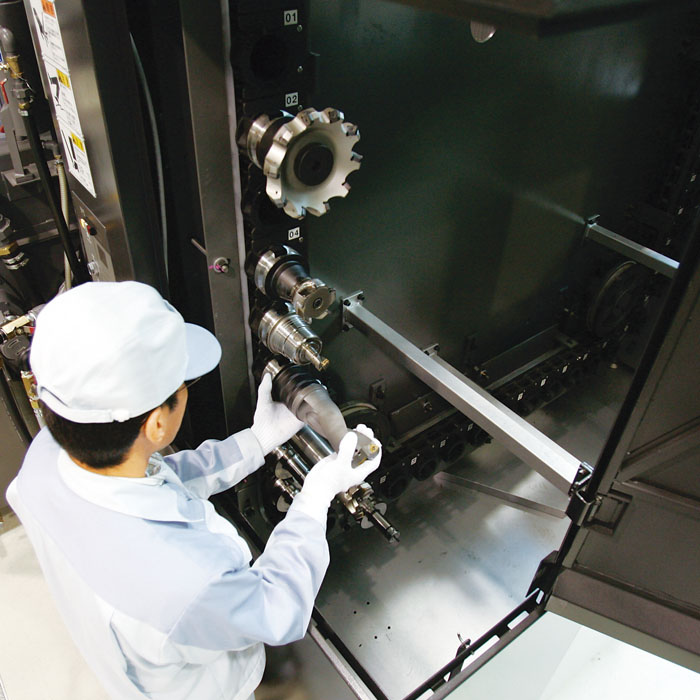

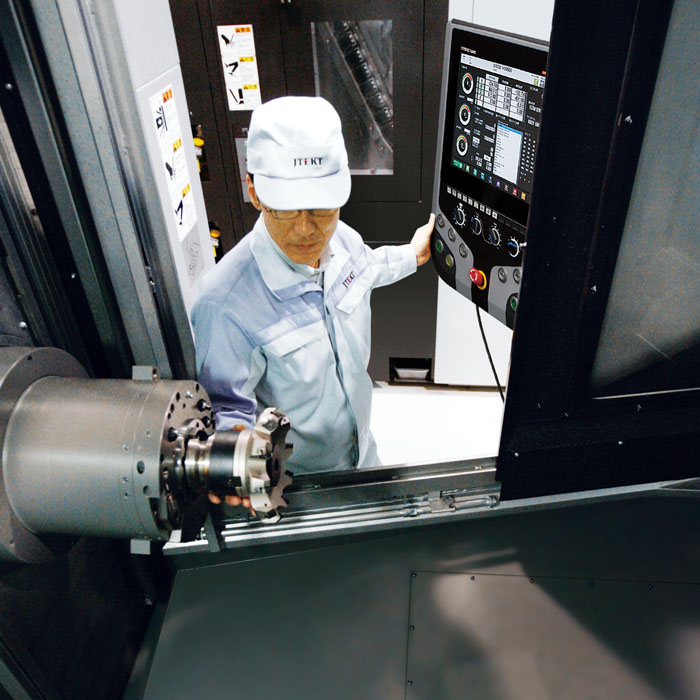

The FH800SX-i is machining centers, featuring both high speed performance and highly rigid machining. Top-level performance in three features of "Large", "Fast", and "Strong" . Additionally, building comfortable and safe machine is sought by improving accessibility to workpiece and visibility. This model has designed for transportation machinery, construction machinery, energy- related industry, aerospace industry and industrial machinery.

AVAILABLE MACHINE SEARCH BY INDUSTRY

SPECIFICATION

ITEMS	UNIT	FH800SX-i
Table
Table dimensions ( pallet dimensions )	mm	□800 (Pallet)
Stroke
X-axis	mm	1,450
Y-axis	mm	1,250
Z-axis	mm	1,550
Feeds
Rapid feed rate (X, Y and Z)	m/min	54
Spindle
Spindle speed	min¯¹	50 ~ 6,000 [ 50 ~ 6,000 ] / [ 50 ~ 15,000 ]
Spindle nose shape		BT No.50 [ HSK ]
Spindle motor, short-time/ continuous	kW	30 / 22 [ 55 / 45 / 37 ] / [ 37 / 30 ]

[ ] : Special specifications

Achieving top level machining of medium and large parts across all industries

Workpiece range, the largest in the class
• Maximum workpiece swing, maximum workpiece height
• Maximum stroke are realized to be the largest in the class

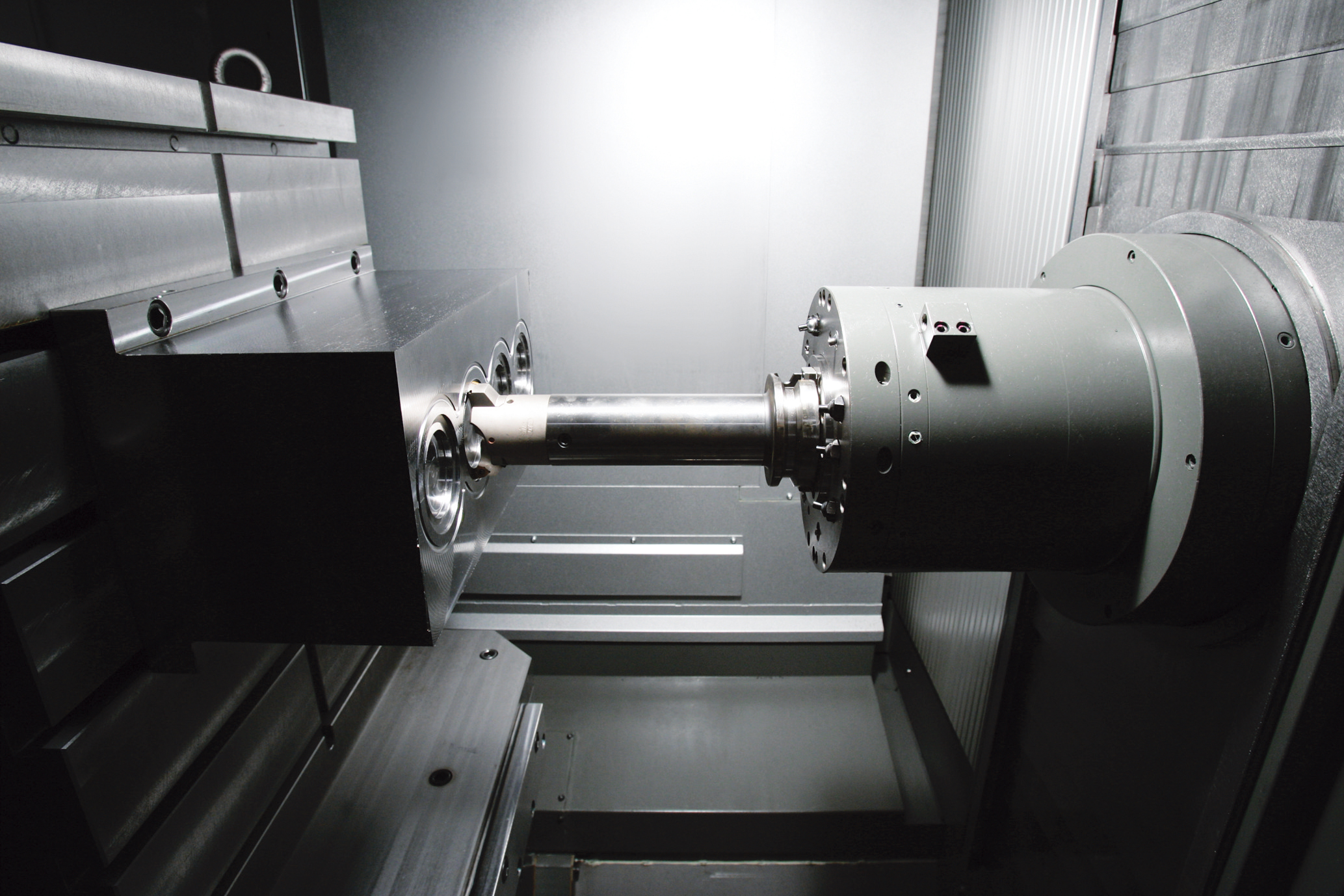

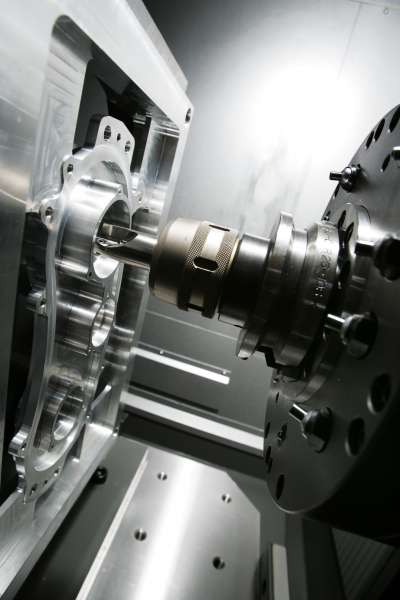

Highest cutting performance in its class • High - torque main spindle capable of highly effective machining of large-size parts of every material is equipped

Best speed performance in its class
• Achieving over twice the speed of the horizontal boring machine
• 5-face fabrication machine which are the representatives of large machine tools
