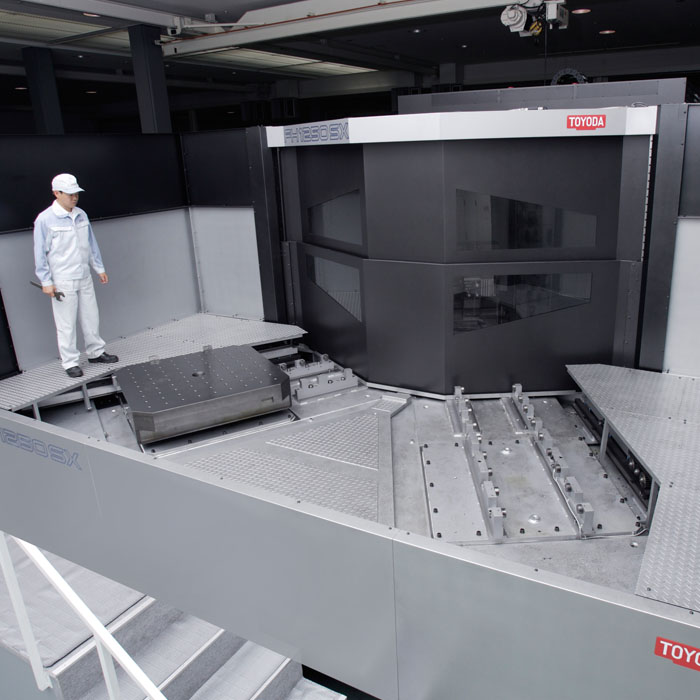

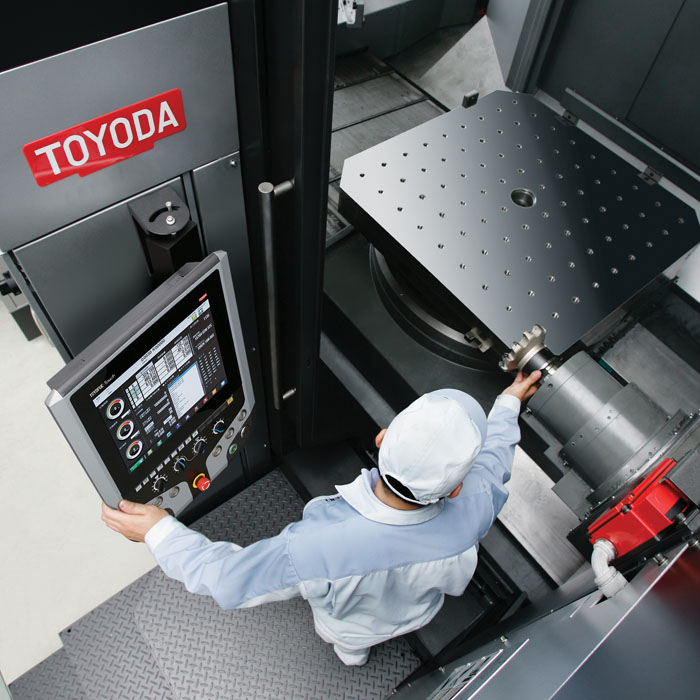

Large size horizontal machining center. The FH12500SX5-i contains a spindle that enables the user to choose from high-speed machining to heavy-duty cutting to suit customer needs. A large-size horizontal machining center with a high-rigidity and large torque quill spindle.
SPECIFICATION |
---|
ITEMS | UNIT | FH12500SX5-i |
Table dimensions (pallet dimensions) | mm | □1250 [1,250×1,600] |
Stroke | ||
X-axis | mm | 2,400 |
Y-axis | mm | 1,600[1,800 ※] |
Z-axis | mm | 1,850 |
Feeds | ||
Rapid feed rate (X, Y and Z) | m/min | 42 |
Spindle | ||
Spindle speed | min¯¹ | 6,000[15,000] |
Spindle nose shape | BT No.50 | |
ATC | ||
Tool holding capacity | tool | 60 |
Tool change time (Tool-to-Tool) | sec | 2.8(~15kg)
3.2(15~35kg) |

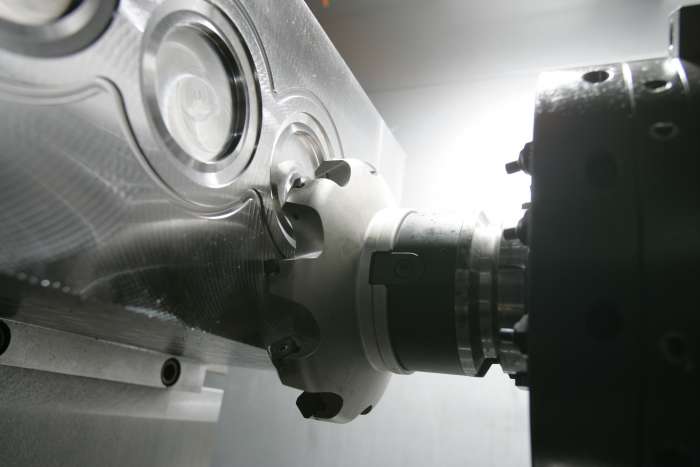

Optimal for machining large parts for any industry

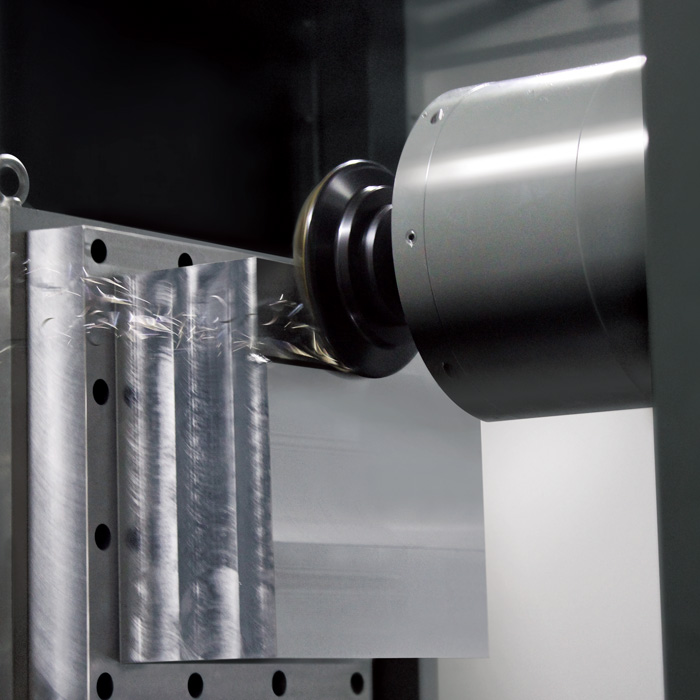

The performance of the machining center depends on the Spindle.
• The spindle serves as a core of the machining center.
• JTEKT sticks to the spindle, which is important because it is located nearest the cutting point, to keep stable cutting accuracy.

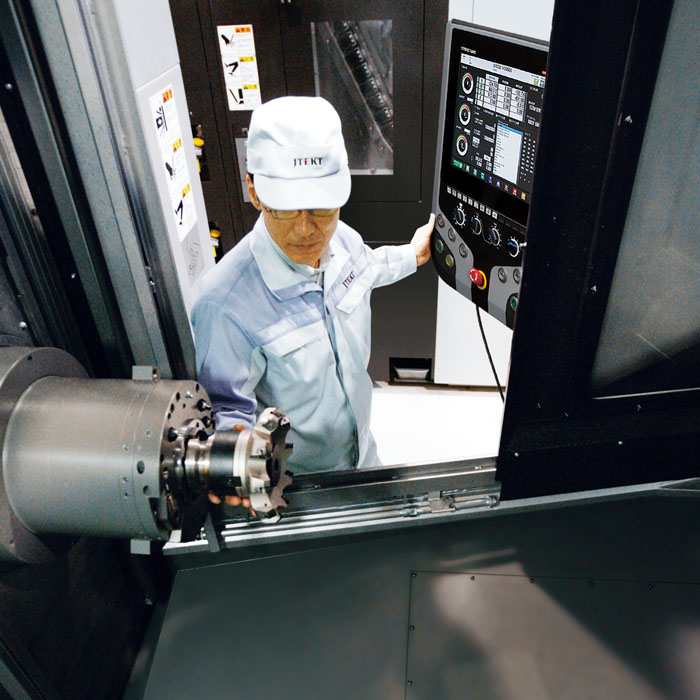

Adopting a spindle cartridge replacement system with maintainability in mind
• Even in the rare chance that a failure does occur, a replacement spindle cartridge that has been checked at JTEKT for operation and quality can be installed in its place, keeping restoration time down to a minimum.
A Rigid cylindrical roller slide able to withstand high speed, high acceleration travel while still maintaining rigidity is adopted
• Compared to the ball guide, the cylindrical roller slide features less elastic deformation against loads and smaller displacement caused by load variation, as well as possesses superior vibration damping characteristics.
• The feature makes it possible to position quickly with smaller orientation changes upon sudden acceleration or stoppages contributing to a higher level of production efficiency.
• Because of JTEKT’s assembling technology which allows for strict mounting face accuracies, the rigid cylindrical roller slide offers the best rapid feed rate and acceleration in it’s class.
