FV1890S

FV1890S is the high rigidity and heavy duty cutting vertical machining centers that be able to make the rigidity and accuracy of the large machine even higher through the integration of sharpened technology to improve heavy cutting with unrestrained power with Y- axis hybrid slide & dual ball - screw and 4 - slide Y-axis with little overhang.

AVAILABLE MACHINE SEARCH BY INDUSTRY

SPECIFICATION

ITEMS	UNIT	FV1890S No.40
Table
Working area dimension	mm	1,950 X 900
Stroke
X-axis stroke (Table left-right movement)	mm	1,800
Y-axis stroke (Saddle forward-back movement)	mm	900
Z-axis stroke (Spindle-head vertical movement)	mm	900
Feeds
Rapid feed rate (X, Y, Z)	m/min	20 / 20 / 18
Spindle
Spindle speed	min¯¹	15 ~ 6,000 [ 15 ~ 10,000 ]
Spindle nose shape	—	BBT50
ATC
ATC Tool holding capacity	tool	30 [ 40 ]

[ ] : Optional

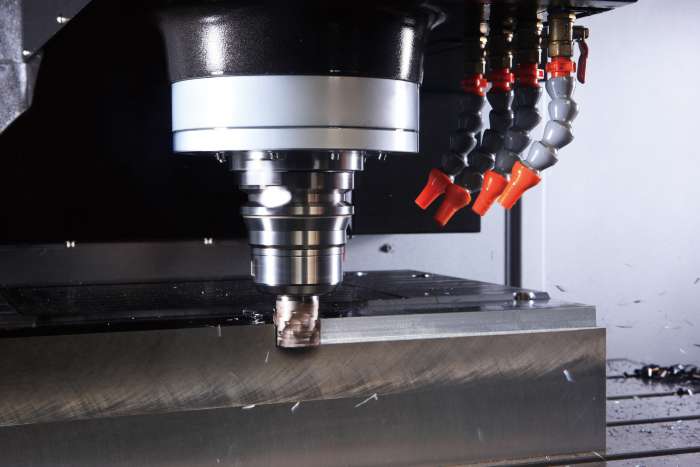

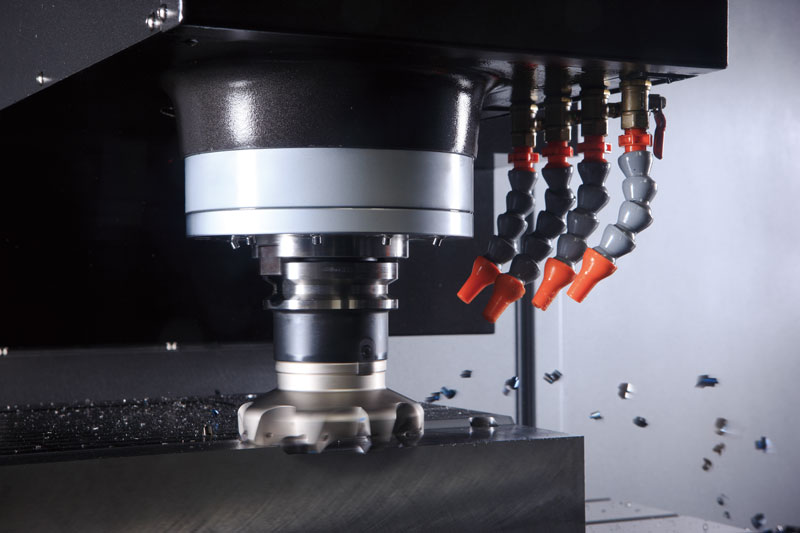

Improved heavy cutting with unrestrained power

Standard Feature
• Y-axis hybrid slide A dual ball-screw is used on the Y-axis feed mechanism

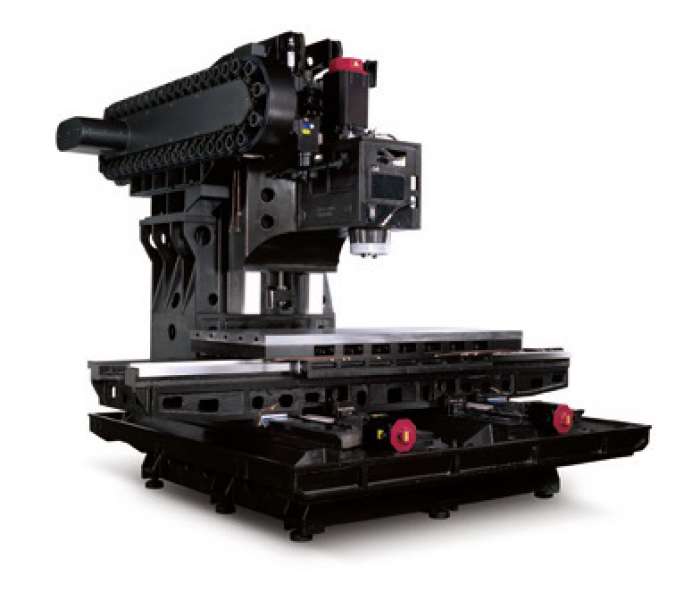

• 4 - slide Y- axis with little overhang by supporting the table and X-axis slide base with 4 Y-axis slide
• Wide machining range, Travel , table size and table loading mass are all the biggest in the class

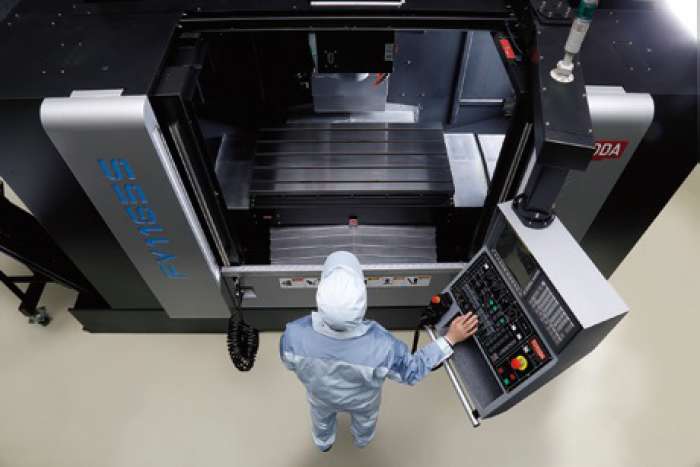

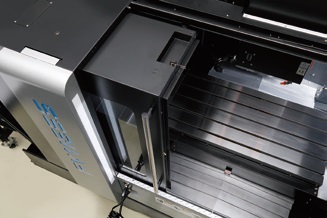

• User-friendly with good work - ability for the operator with wide working area
• Abundance standard accessories

VERTICAL MACHINING CENTERS

FV1890S
