FH630SX-5A

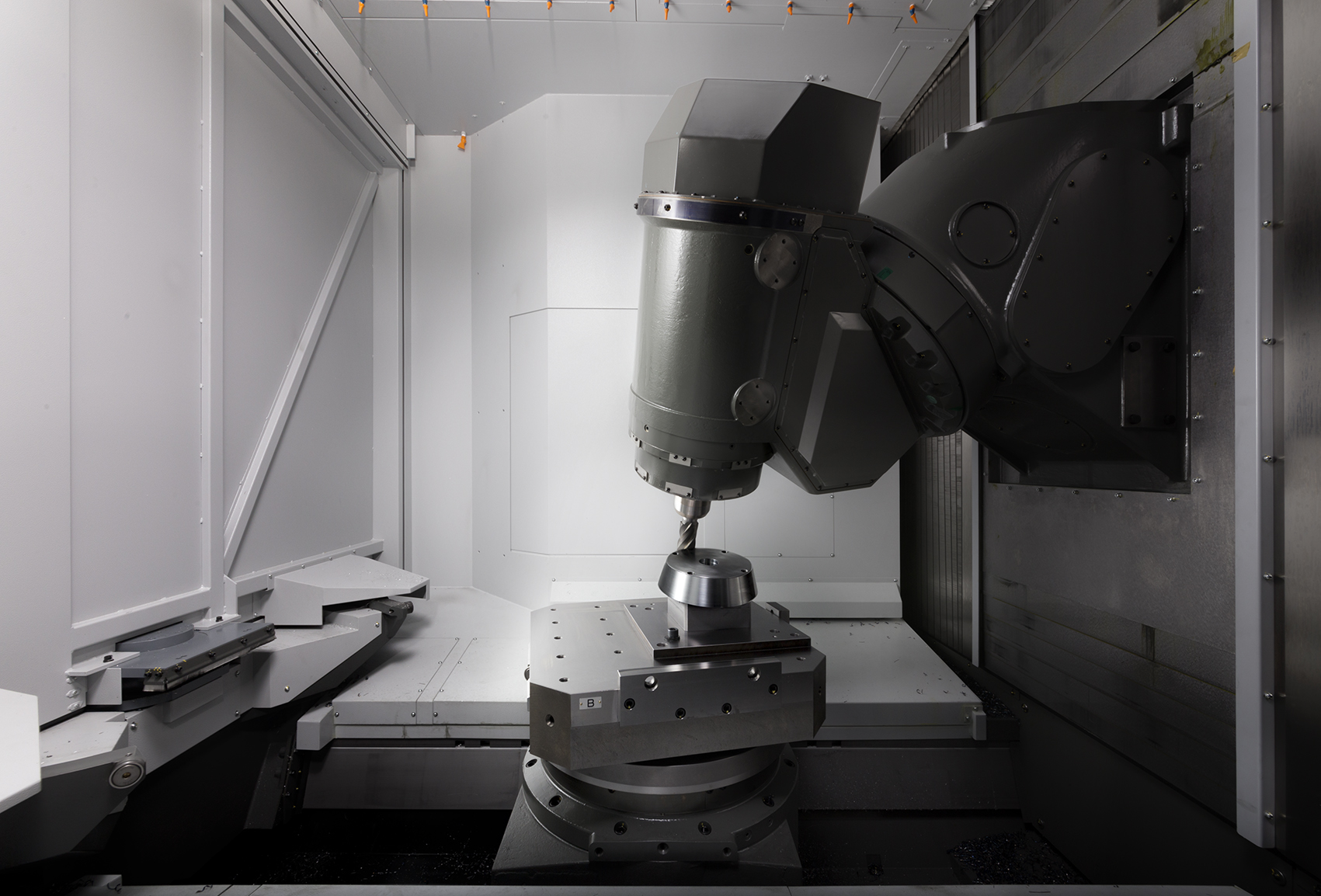

The FH630SX-5A is  5-axis machining center performs simultaneous achieving complex shape parts and multi-surface processing all with one set-up. This equates to reduced set-up time and shorter workpiece machining lead time and assures quality, improves production efficiency, and achieves high cost performance.


AVAILABLE MACHINE SEARCH BY INDUSTRY
SPECIFICATION
ITEMSUNIT
FH630SX-5A
Table (B-axis & Pallet)


     Table dimensions (pallet dimensions)
mm630 X 630
     Pallet height (from floor)
mm
1,250
     Loading mass on the pallet
kg
1,500
Stroke


     X-axis
mm800 (+300_ATC stroke)
      Y-axis
mm850
      Z-axis
mm1,050
      C-axis
°

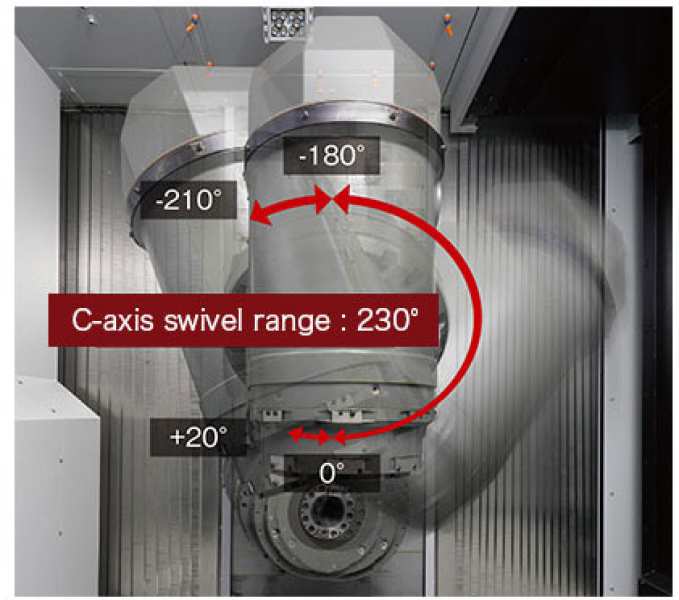

-210 ~ +20
     Max. workpiece swing X Max. workpiece height
mm
ø1,170 x 1,600　*1
Spindle


     Spindle speed
min¯¹
50 ~ 15,000 [ 50 ~ 8,000 ]
     Spindle nose shape

BT No.50 Big+ [ HSK-A100 ]
     Spindle motor, short-time/ continuous
kW
55 / 37 [ 80 / 55 ]
ATC

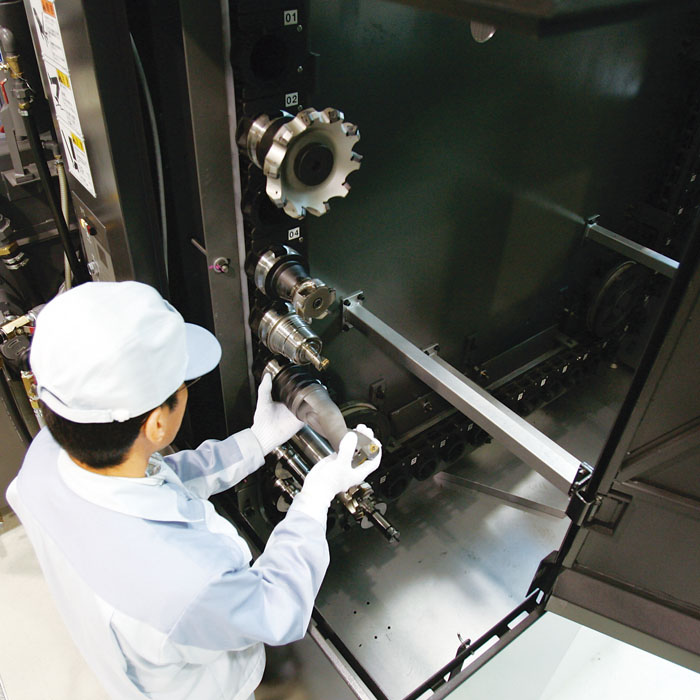

     Tool holding capacity
Number of
60 [121]
Dimensions & Weight


     Floor space (width × depth)
mm6,670 x 4,320
     Machine height
mm4,135
     Machine weight (Main unit only)
kg22,000

*1 Partial limitations exist for Workpiece swing x Height. For detail shape, refer to the tooling data.
[ ] : Special specifications

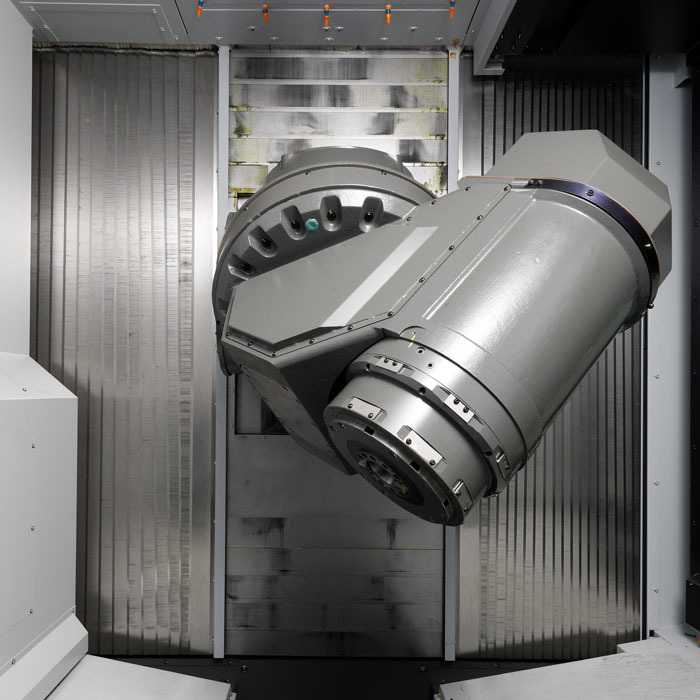

Bigger, More Rigid

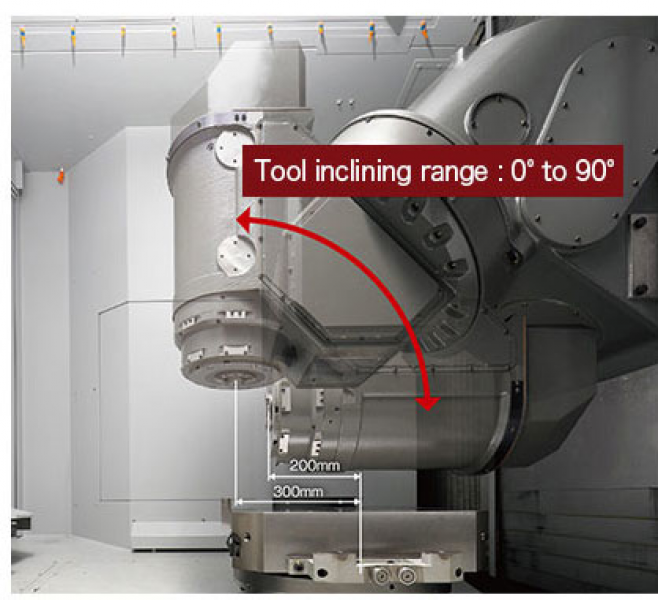

The Flexible Swivel Spindle and Highly Rigid, Supportive Platform

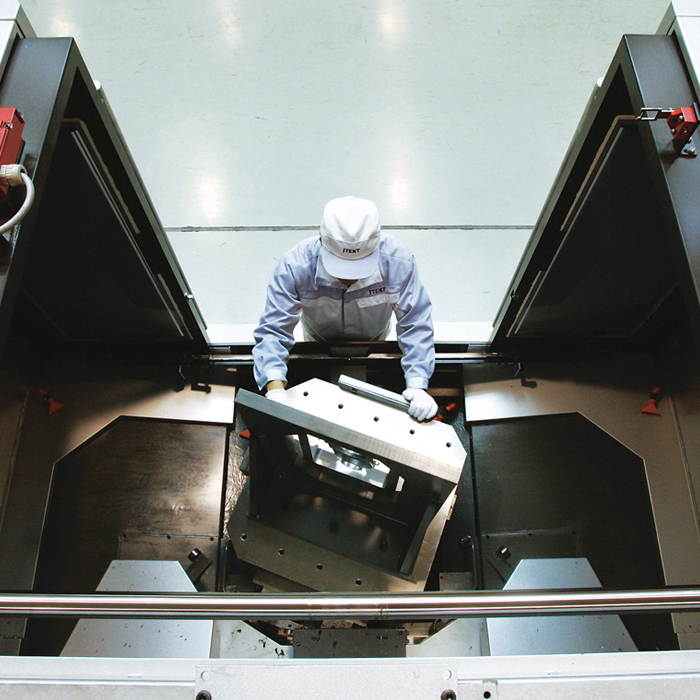

Highest level of work-piece loading capacity
     • Maximum work-piece swing
     • Maximum work-piece height and maximum workpiece mass make this machine the largest in its class

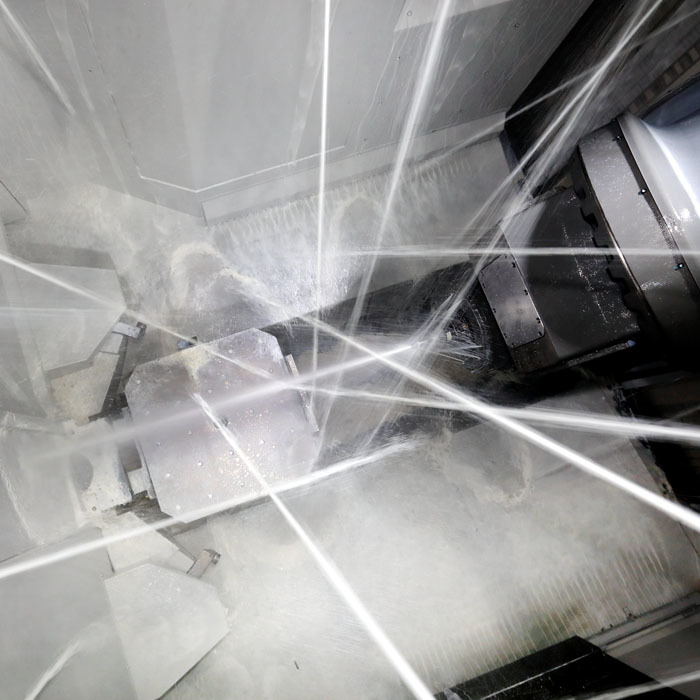

Cutting ability, the strongest in the class

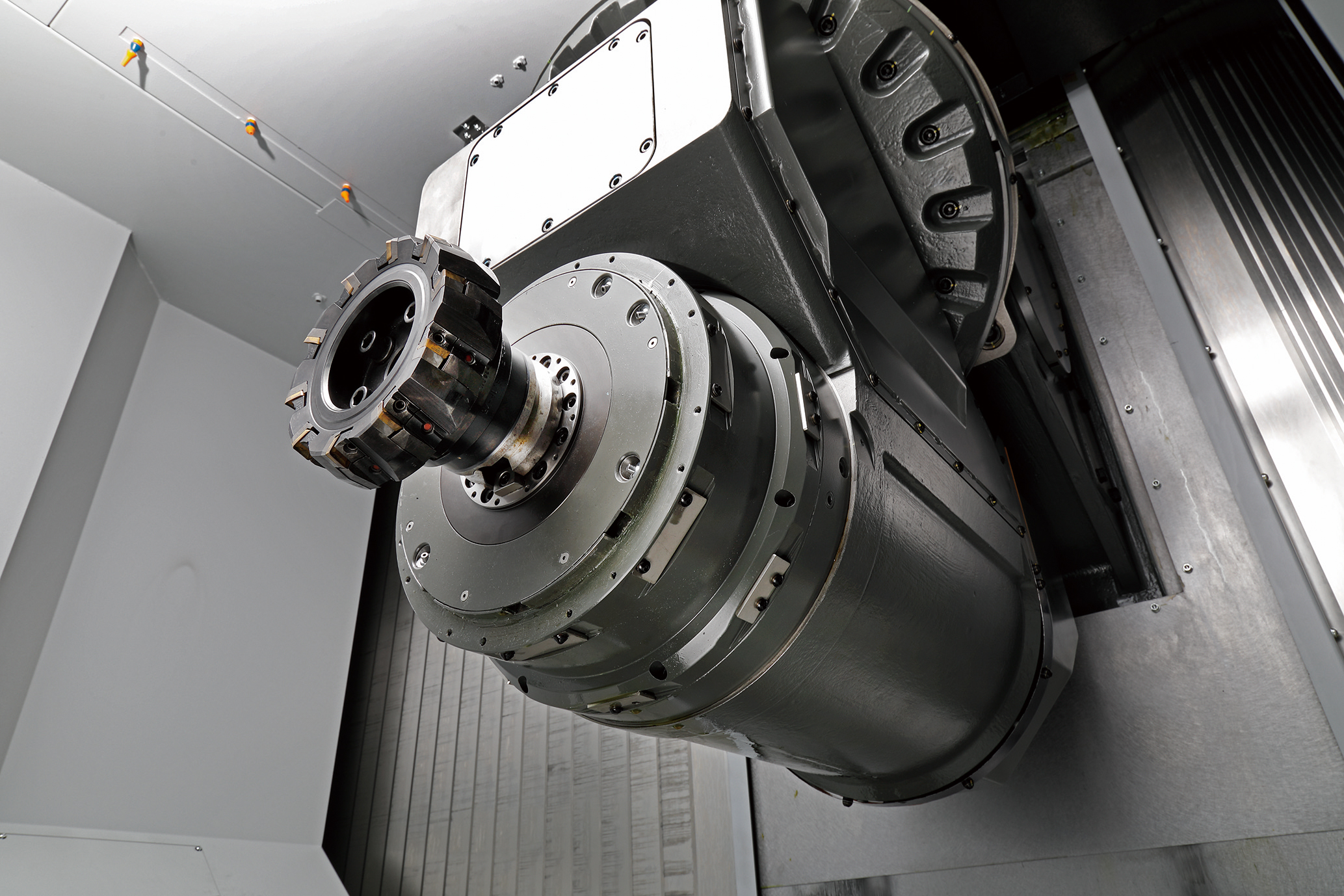

     • From aluminum to titanium-the FH630SX-5A features a highly versatile 5 axis special-purpose spindle not limited to a single material
