GS200H

GS200 is A compact machine size suitable for production lines A machine size suitable for production lines makes a shift to in-line possible, thus using significantly less floor space compared to conventional machining methods.

AVAILABLE MACHINE SEARCH BY INDUSTRY

SPECIFICATION

ITEMS	UNIT	GS200H
Feed unit
Travel amount (X, Y, Z)	mm	470, 360, 620
Rapid feed rate	m/min	48
Max. work-piece diameter	mm	Ø220
Spindle
Spindle speed	min¯¹	6,000
Spindle motor, short-time / continuous	kW	30 / 25
Control
CNC	min¯¹	TOYOPUC - GC70

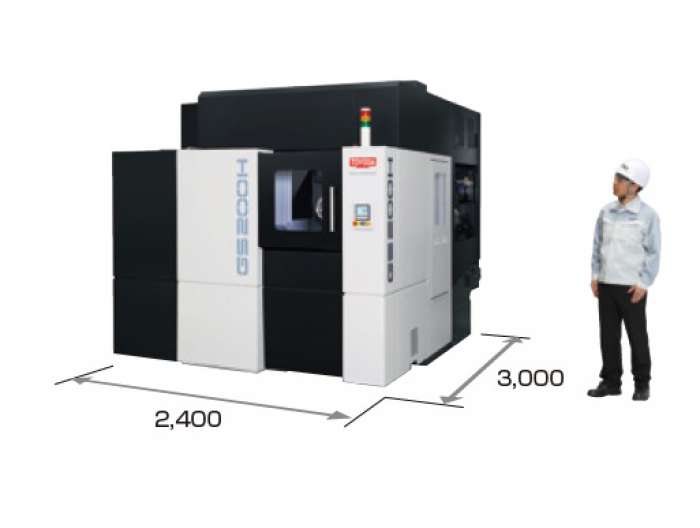

Floor space (Width X depth)
Machine dimension	mm	2,400 X 3,000

*1 If the option of 8 distributor ports is used, the work-piece RPM will be 1,500 min¯¹.

High Productivity and quality achieved by a suitable machine size for mass-production lines

Compact machine size suited for production lines
• A machine size suitable for production lines make a shift to in-line possible
• Using significantly less floor compare to convention machine method

Offering high productivity and stable accuracy
• High rigidity spindle
• High-rigidity work-piece axis.
• High - performance feed unit.
• High-rigidity , Low-heat displacement platform.
• Low center-of-gravity /compact design.

Support Automation
• Doors have been on the machine's front and side

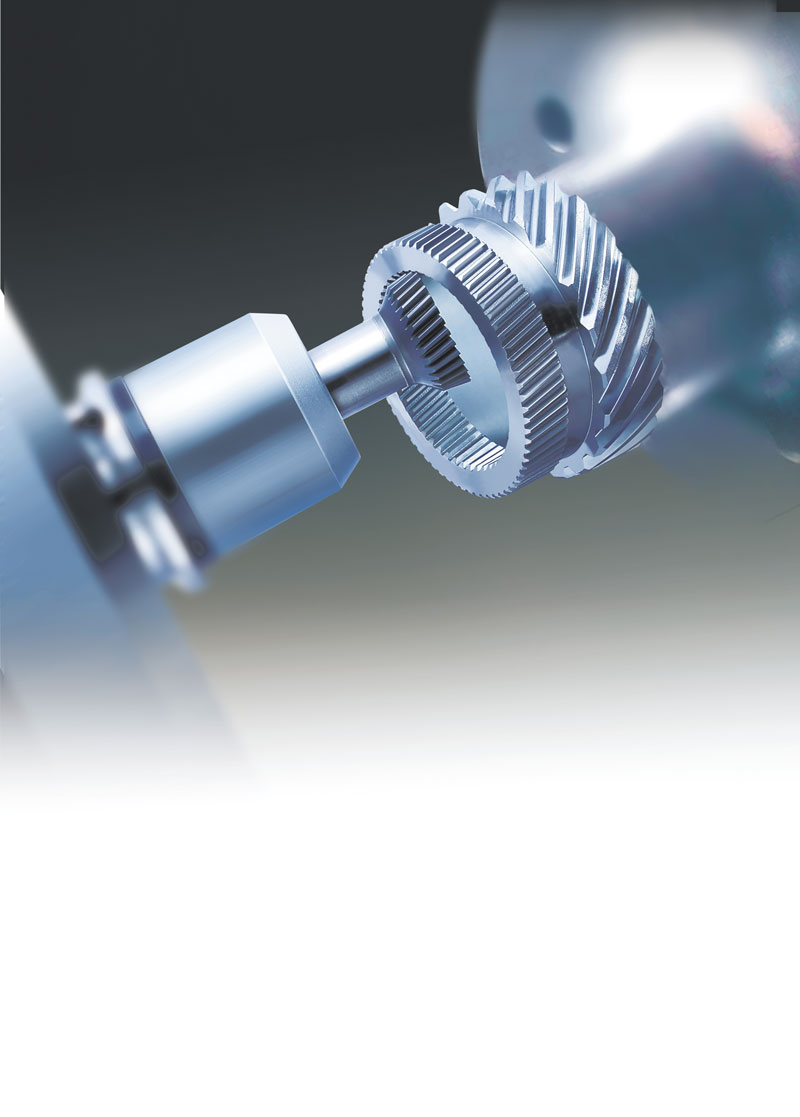

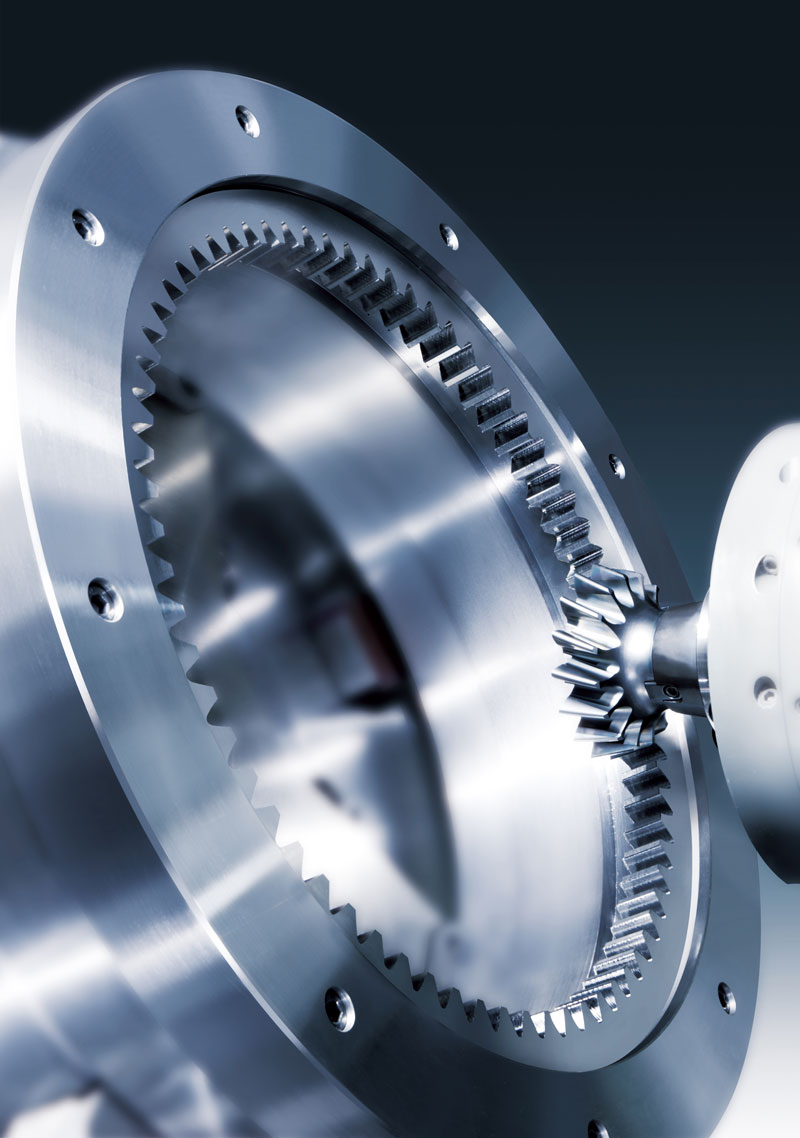

GEAR SKIVING CENTERS

GS200H
