GS700H

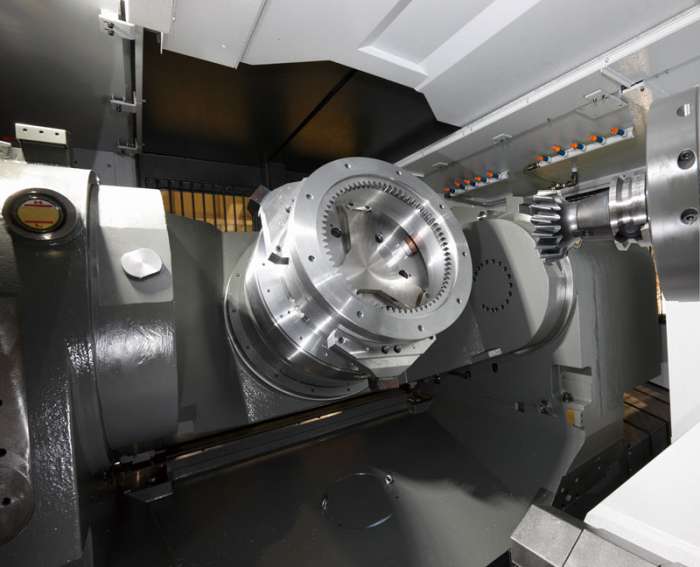

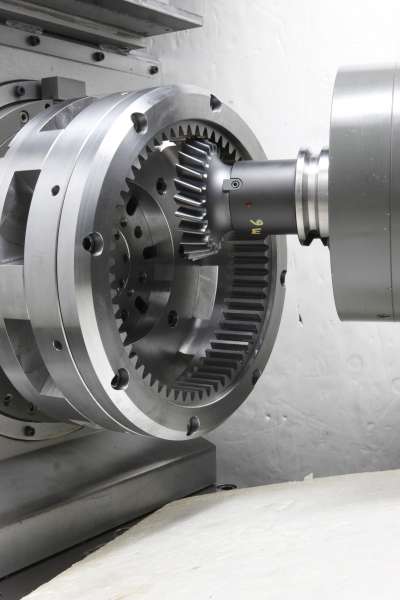

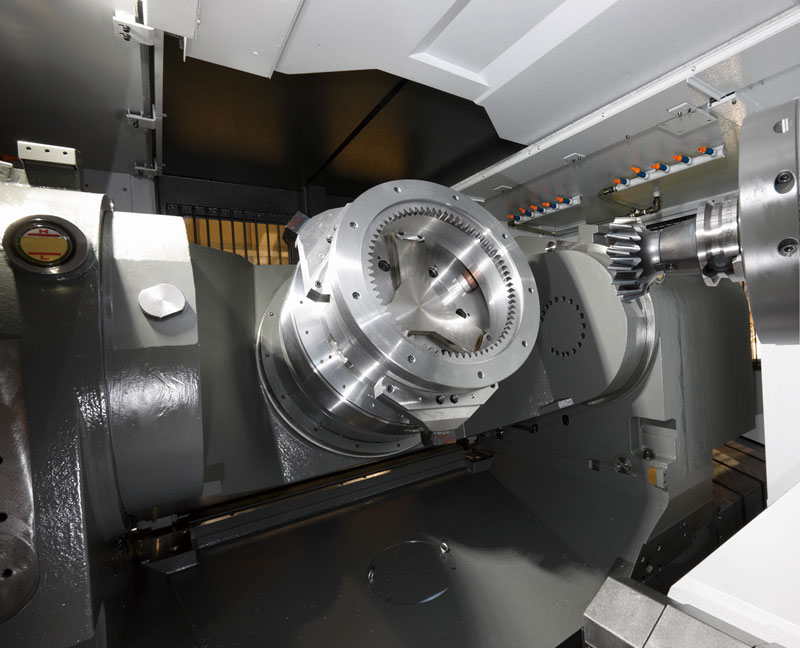

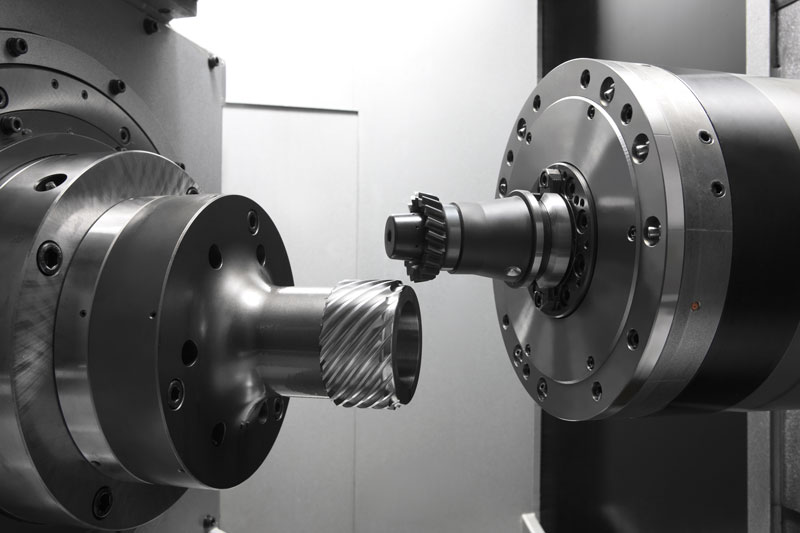

High cutting capacity enabling machining of large size gears, GS700H is equipped with a JTEKT original high - rigidity trunnion type table and #50 high-power  spindle with a rotation speed of 6,000 min-1. Its high cutting capability realized skiving of large - size gears.

AVAILABLE MACHINE SEARCH BY INDUSTRY
SPECIFICATION
ITEMSUNIT
GS700H
Feed unit


     Travel amount (X, Y, Z)
mm
900, 850, 900
     Swiveling angle of tilt axis (A-axis)

100 (+5 ~ -95)
     Rapid feed rate
m/min
20 (X), 36 (Y, Z)
     Rotation speed (A / B-axis)
min¯¹
6
Work-piece size

     External gear mmØ250 ~ Ø700
     InternalmmØ250 ~ Ø700
Spindle


     Spindle speed
min¯¹
6,000
     Spindle motor, short-time / continuous
kW
30 / 22
Work-piece axis


     Rotating speed
min¯¹
1,000
     Rated output
kW
50 / 17.5
     Max. work-piece swing
mmØ1,346
Control


     CNC
min¯¹
TOYOPUC-GC70
Floor space (Width X depth)


     Machine dimension
mm
5,200 X 6,200

*1 If the option of 8 distributor ports is used, the work-piece RPM will be 1,500 min¯¹.


Integrated machining of large diameter and large module gears into one machine


High cutting ability achieving φ700 mm, module 6, large gear machining
     • Developed original high rigidity trunnion type table
     • Equipped with high rigidity spindle 6,000min-1
     • Original skiving tools

High-precision technology
     • Original box slide
     • Stabilized processing precision by low heat displacement design of equipment

Integrated machining of gears process into one machine
     • Automatic programming function
     • High-accuracy skiving using by high-speed synchronization both spindle and work-piece axis
